WD136 Cast Alloy Wheel
WD136 is a cast alloy wheel (rim) in 4 finishes: Gunmetal Machined Face, Gunmetal (Full Paint), Gloss Black (Full Paint) and Gloss Black Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 21 inch: 1 size (21x9), 1 bolt pattern (5x120), offset ET 45–45.5 mm and center bore 62.5 mm. Listed for Li Auto. Not sure what PCD, ET and CB mean? Read how to choose wheels.

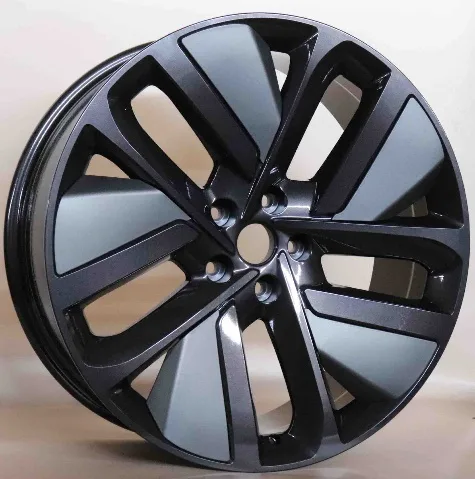

No photo for this finish yet; showing another finish of WD136.
Finish
Wheel sizes: 21x9
Bolt patterns (PCD): 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 21x9 | 45 | 5x120 | 62.5 | Cone seat | Li Auto |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 21x9 is a 21 inch wheel with a 9 inch wide rim. The J after a width, as in 9J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD136 comes in ET 45–45.5; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x120 is 5 bolts on a 120 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 62.5 mm for WD136. A bore larger than the hub needs centering rings.
