WD234 Cast Alloy Wheel

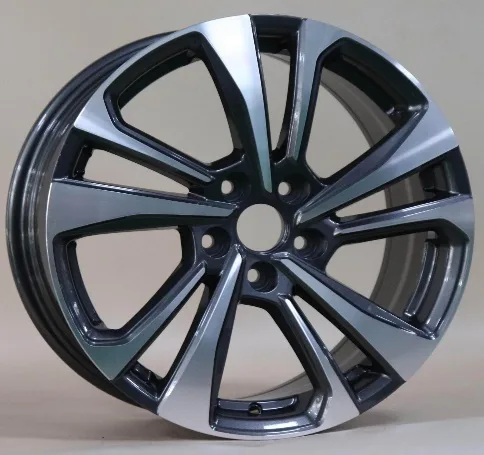

WD234 is a cast alloy wheel (rim) in 1 finish: Gunmetal Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 17 inch: 1 size (17x7), 1 bolt pattern (5x110), offset ET 48.5 mm and center bore 63.2 mm. Listed for Changan (Eado). Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Changan.
Finish
Wheel sizes: 17x7
Bolt patterns (PCD): 5x110
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 17x7 | 48.5 | 5x110 | 63.2 | Cone seat | Changan Eado |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x7 is a 17 inch wheel with a 7 inch wide rim. The J after a width, as in 7J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD234 comes in ET 48.5; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x110 is 5 bolts on a 110 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 63.2 mm for WD234. A bore larger than the hub needs centering rings.
