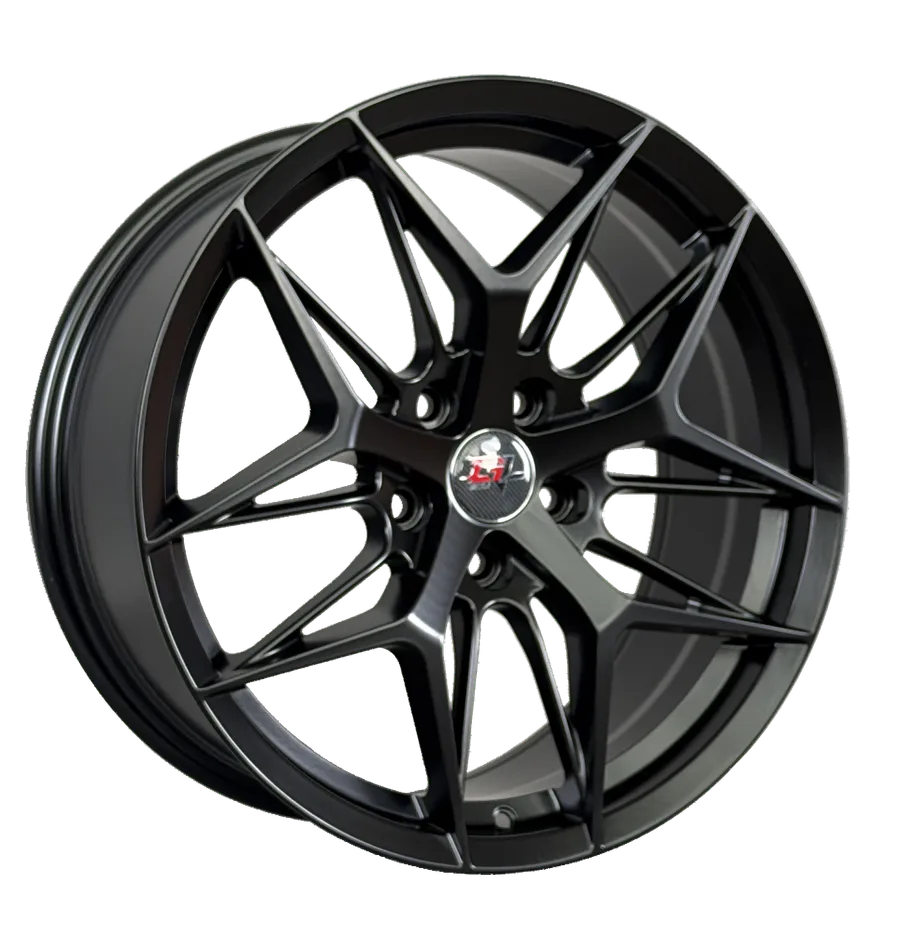

WD114 Cast Alloy Wheel in Matte Black (Full Paint)
WD114 is a cast alloy wheel (rim) in Matte Black (Full Paint), one of 3 finishes. It is an aftermarket design. It comes in 16–19 inch: 4 sizes (16x7, 17x7.5, 18x8, 19x8.5), 3 bolt patterns (5x114.3, 5x112 and 5x100), offset ET 35–38 mm and center bore 66.45–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 16x7, 17x7.5, 18x8, 19x8.5
Bolt patterns (PCD): 5x100, 5x112, 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Stock | Copy specs |
|---|---|---|---|---|---|
| 16x7 | 35 | 5x100 | 73.1 | 50+ | |
| 16x7 | 35 | 5x112 | 66.45 | 50+ | |
| 16x7 | 35 | 5x114.3 | 73.1 | 43 | |
| 17x7.5 | 38 | 5x112 | 66.45 | 50+ | |
| 17x7.5 | 38 | 5x114.3 | 73.1 | 50+ | |
| 18x8 | 38 | 5x112 | 66.45 | 50+ | |
| 18x8 | 38 | 5x114.3 | 73.1 | 47 | |
| 19x8.5 | 35 | 5x112 | 66.45 | 24 | |
| 19x8.5 | 35 | 5x114.3 | 73.1 | 0 | |
| 19x8.5 | 35 | 5x114.3 | 73.1 | 26 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 16x7 is a 16 inch wheel with a 7 inch wide rim. The J after a width, as in 7J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD114 comes in ET 35–38; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x114.3 is 5 bolts on a 114.3 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.45–73.1 mm for WD114. A bore larger than the hub needs centering rings.
