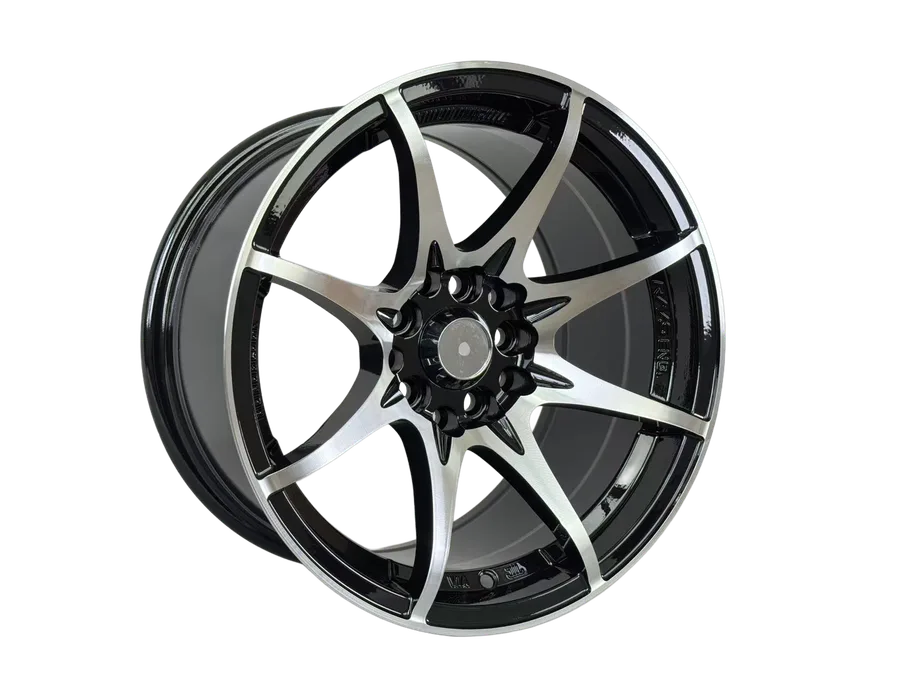

WD1160 Cast Alloy Wheel
WD1160 is a cast alloy wheel (rim) in 1 finish: Gloss Black Machined Face. It is an aftermarket design. It comes in 15–17 inch: 3 sizes (15x8.25, 16x9, 17x9.0), 2 bolt patterns (10x100x114.3 and 8x100x114.3), offset ET 0–15 mm and center bore 73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 15x8.25, 16x9, 17x9.0
Bolt patterns (PCD): 10x100x114.3, 8x100x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Stock | Copy specs |
|---|---|---|---|---|---|
| 15x8.25 | 15 | 10x100x114.3 | 73.1 | 50+ | |
| 15x8.25 | 15 | 8x100x114.3 | 73.1 | 50+ | |
| 16x9 | 0 | 10x100x114.3 | 73.1 | 50+ | |
| 17x9.0 | 0 | 10x100x114.3 | 73.1 | 50+ |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 15x8.25 is a 15 inch wheel with a 8.25 inch wide rim. The J after a width, as in 8.25J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD1160 comes in ET 0–15; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 10x100x114.3 is 10 bolts on a 100 or 114.3 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 73.1 mm for WD1160. A bore larger than the hub needs centering rings.
