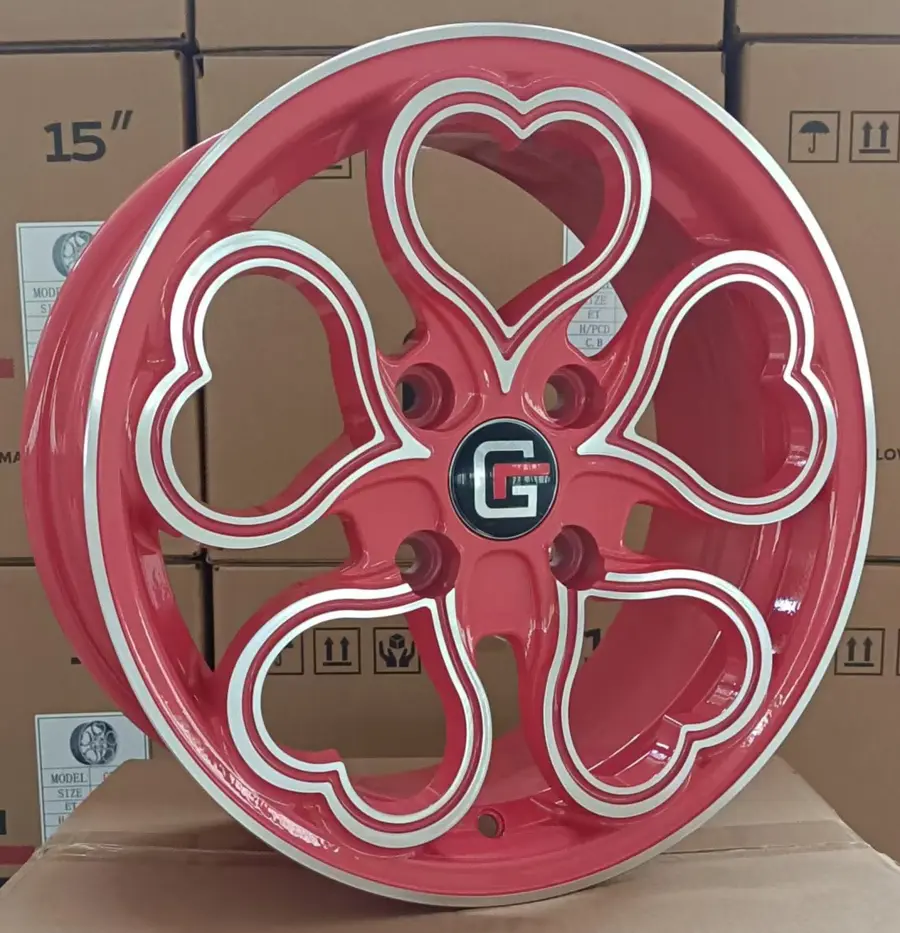

WD090 Cast Alloy Wheel
WD090 is a cast alloy wheel (rim) in 1 finish: Pink Machined Face. It is an aftermarket design. It comes in 15 inch: 1 size (15x6.5), 1 bolt pattern (4x114.3), offset ET 35 mm and center bore 73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 15x6.5
Bolt patterns (PCD): 4x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Stock | Copy specs |
|---|---|---|---|---|---|
| 15x6.5 | 35 | 4x114.3 | 73.1 | 23 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 15x6.5 is a 15 inch wheel with a 6.5 inch wide rim. The J after a width, as in 6.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD090 comes in ET 35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 4x114.3 is 4 bolts on a 114.3 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 73.1 mm for WD090. A bore larger than the hub needs centering rings.
