WD0606 Forged Alloy Wheel

Name: WD0606 Alloy Wheel
Brand: Sky Flux
SKU: WD0606

WD0606 is a forged alloy wheel (rim) in 2 finishes: Brushed Aluminium (Natural) and Polished. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 19–21 inch: 6 sizes (19x8.5, 19x9.5, 20x8.5, 20x9.5, 21x9, 21x10), 1 bolt pattern (5x112), offset ET 34–45 mm and center bore 66.45 mm. Listed for Mercedes-Benz. Not sure what PCD, ET and CB mean? Read how to choose wheels.

More wheels for Mercedes-Benz.

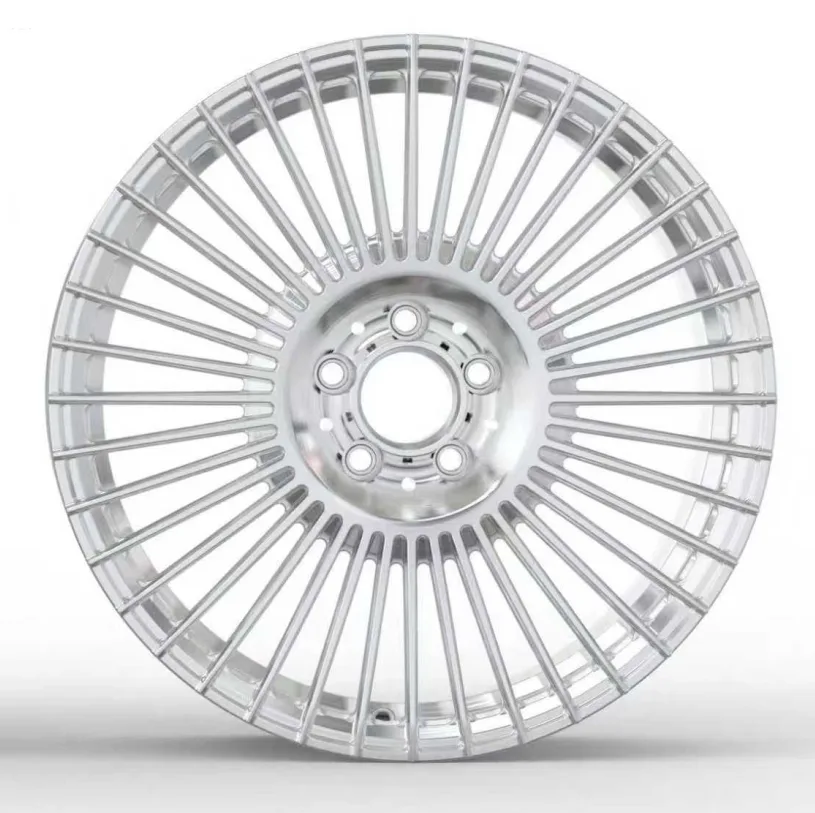

WD0606 alloy wheel rim – Brushed Aluminium (Natural)

No photo for this finish yet; showing another finish of WD0606.

Finish

Brushed Aluminium (Natural)Polished

Wheel sizes: 19x8.5, 19x9.5, 20x8.5, 20x9.5, 21x9, 21x10

Bolt patterns (PCD): 5x112

Sizes and specifications of WD0606 in Brushed Aluminium (Natural)
Size (D x J)	Offset (ET)	Bolt pattern (PCD)	Center bore (CB)	Load (kg)	Weight (kg)	Fits
19x8.5	36	5x112	66.45	950	11.9	Mercedes-Benz
19x9.5	43.5	5x112	66.45	950	12.4	Mercedes-Benz
20x8.5	36	5x112	66.45	950	12.9	Mercedes-Benz
20x9.5	43.5	5x112	66.45	950	13.2	Mercedes-Benz
21x9	34	5x112	66.45	950	14.3	Mercedes-Benz
21x10	45	5x112	66.45	950	14.5	Mercedes-Benz

What these numbers mean

Size (D x J): Diameter in inches, then rim width in inches: 19x8.5 is a 19 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
Offset (ET): The distance in mm from the wheel's centerline to its mounting face. WD0606 comes in ET 34–45; a lower ET sits the wheel further out.
Bolt pattern (PCD): The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
Center bore (CB): The central hole that sits over the vehicle's hub: 66.45 mm for WD0606. A bore larger than the hub needs centering rings.
