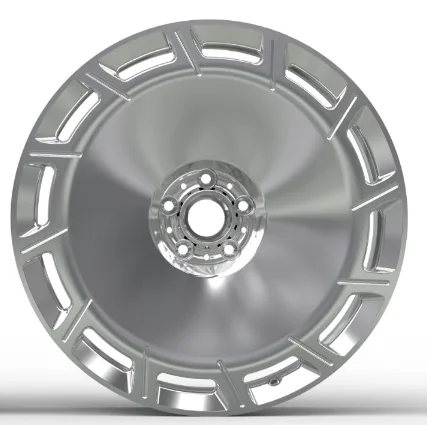

WD0604 Forged Alloy Wheel
WD0604 is a forged alloy wheel (rim) in 1 finish: Polished. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 20–22 inch: 3 sizes (20x8.5, 21x9, 22x9), 1 bolt pattern (5x120), offset ET 41 mm and center bore 57.06 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 20x8.5, 21x9, 22x9
Bolt patterns (PCD): 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Load (kg) | Stock | Copy specs |
|---|---|---|---|---|---|---|
| 20x8.5 | 41 | 5x120 | 57.06 | 1050 | 6 | |
| 21x9 | 41 | 5x120 | 57.06 | 1050 | 2 | |
| 22x9 | 41 | 5x120 | 57.06 | 1050 | 4 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 20x8.5 is a 20 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0604 comes in ET 41; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x120 is 5 bolts on a 120 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 57.06 mm for WD0604. A bore larger than the hub needs centering rings.
