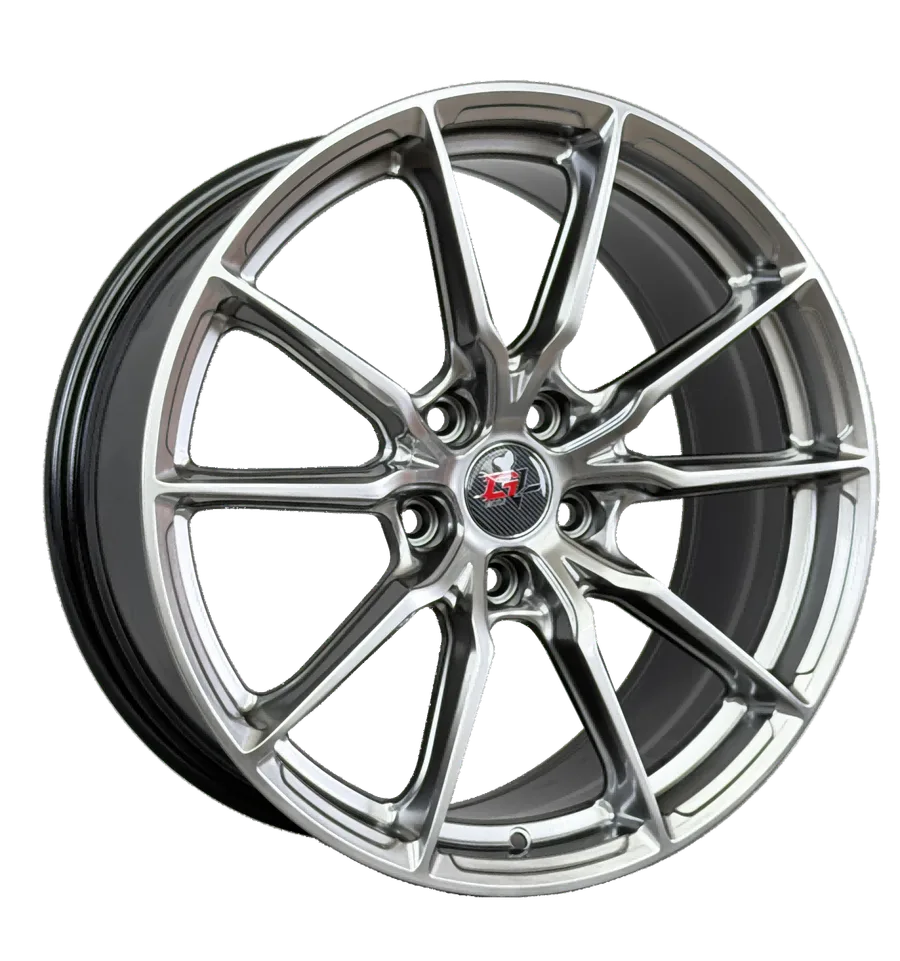

WD060 Cast Alloy Wheel in Hyper Black (Full Paint)
WD060 is a cast alloy wheel (rim) in Hyper Black (Full Paint), one of 2 finishes. It is an aftermarket design. It comes in 17–18 inch: 2 sizes (17x7.5, 18x8), 4 bolt patterns (5x112, 5x114.3, 5x108 and 5x120), offset ET 35 mm and center bore 66.45–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 17x7.5, 18x8
Bolt patterns (PCD): 5x112, 5x114.3, 5x108, 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Stock | Copy specs |
|---|---|---|---|---|---|
| 17x7.5 | 35 | 5x112 | 66.45 | 31 | |
| 17x7.5 | 35 | 5x114.3 | 73.1 | 50+ | |
| 18x8 | 35 | 5x108 | 73.1 | 32 | |
| 18x8 | 35 | 5x112 | 66.45 | 4 | |
| 18x8 | 35 | 5x112 | 66.45 | 50+ | |
| 18x8 | 35 | 5x114.3 | 73.1 | 28 | |
| 18x8 | 35 | 5x120 | 72.56 | 35 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x7.5 is a 17 inch wheel with a 7.5 inch wide rim. The J after a width, as in 7.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD060 comes in ET 35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.45–73.1 mm for WD060. A bore larger than the hub needs centering rings.
