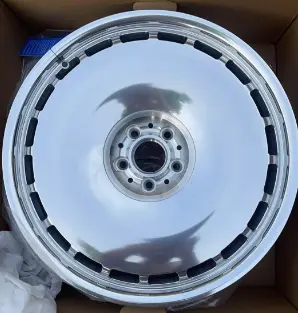

WD0458 Forged Alloy Wheel in Polished + Brushed Rim
WD0458 is a forged alloy wheel (rim) in Polished + Brushed Rim, one of 2 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 20–22 inch: 6 sizes (20x8.5, 21x9, 21x9.5, 22x8.5, 22x9, 22x9.5), 2 bolt patterns (5x120 and 5x112), offset ET 30–38 mm and center bore 66.1–66.5 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 20x8.5, 21x9, 21x9.5, 22x8.5, 22x9, 22x9.5
Bolt patterns (PCD): 5x120, 5x112
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Lug hole (mm) | Load (kg) | Weight (kg) | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|
| 20x8.5 | 30 | 5x120 | 66.1 | 12 | ||||
| 21x9 | 35 | 5x120 | 66.1 | 4 | ||||
| 21x9.5 | 38 | 5x120 | 66.1 | 8 | ||||
| 22x8.5 | 35 | 5x112 | 66.5 | 0 | ||||
| 22x9 | 35 | 5x120 | 66.1 | 4 | ||||
| 22x9.5 | 35 | 5x112 | 66.5 | 0 | ||||
| 22x9.5 | 35 | 5x120 | 66.1 | 4 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 20x8.5 is a 20 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0458 comes in ET 30–38; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x120 is 5 bolts on a 120 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.1–66.5 mm for WD0458. A bore larger than the hub needs centering rings.
