WD0264 Forged Alloy Wheel

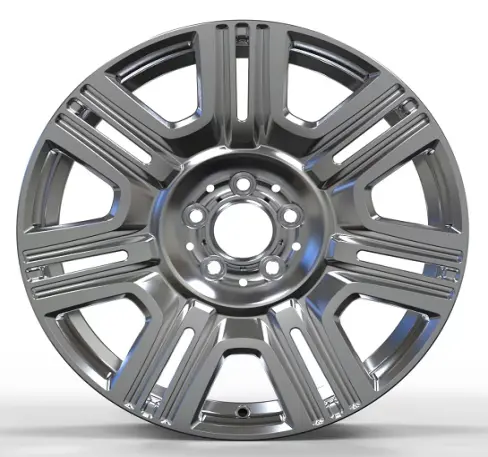

WD0264 is a forged alloy wheel (rim) in 3 finishes: Polished + Brushed Rim, Polished and Gloss Black (Full Paint). It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 18–22 inch: 6 sizes (18x8, 20x8.5, 21x9, 22x8.5, 22x9, 22x9.5), 2 bolt patterns (5x120 and 5x112), offset ET 35–40 mm and center bore 62.5–66.56 mm. Listed for Mercedes-Benz and Rolls-Royce (Cullinan). Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Mercedes-Benz.
Finish
Wheel sizes: 18x8, 20x8.5, 21x9, 22x8.5, 22x9, 22x9.5
Bolt patterns (PCD): 5x112, 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Lug hole (mm) | Load (kg) | Weight (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|---|
| 18x8 | 38 | 5x112 | 66.56 | Mercedes-Benz | 0 | ||||
| 20x8.5 | 35 | 5x120 | 62.5 | 12 | |||||
| 21x9 | 38 | 5x120 | 62.5 | 8 | |||||
| 22x8.5 | 35 | 5x112 | 66.5 | 0 | |||||
| 22x9 | 38 | 5x120 | 62.5 | 4 | |||||
| 22x9.5 | 35 | 5x112 | 66.5 | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 18x8 is a 18 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0264 comes in ET 35–40; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x120 is 5 bolts on a 120 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 62.5–66.56 mm for WD0264. A bore larger than the hub needs centering rings.
