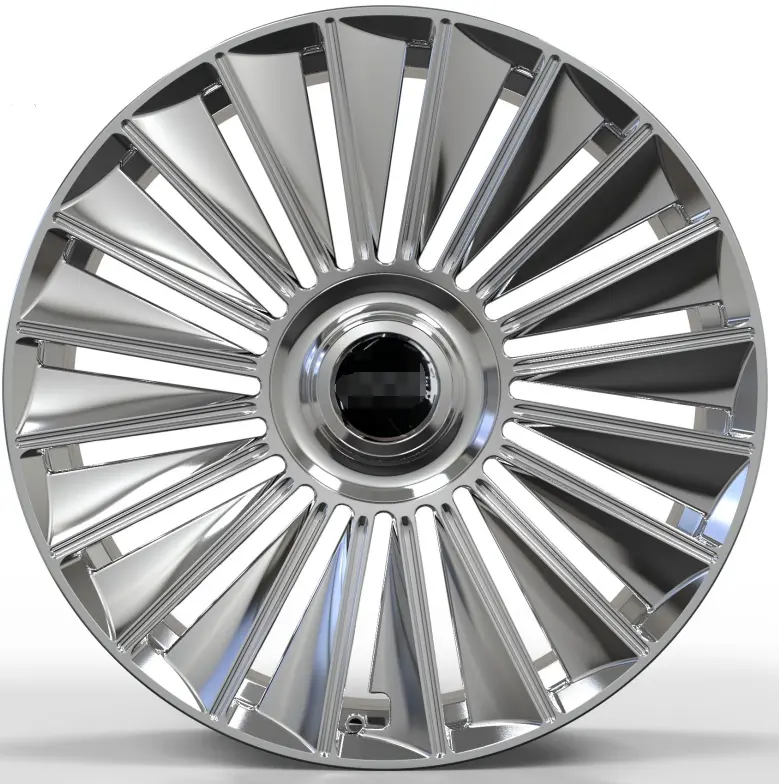

WD0448 Forged Alloy Wheel
WD0448 is a forged alloy wheel (rim) in 2 finishes: Polished and Polished + Brushed Rim. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 17–22 inch: 3 sizes (17x7.5, 20x8.5, 22x8.5), 2 bolt patterns (6x139.7 and 5x112), offset ET 38–45 mm and center bore 66.45–95.1 mm. Listed for Mercedes-Benz. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Mercedes-Benz.
Finish
Wheel sizes: 17x7.5, 20x8.5, 22x8.5
Bolt patterns (PCD): 5x112, 6x139.7
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Lug hole (mm) | Load (kg) | Weight (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|---|
| 17x7.5 | 38 | 5x112 | 66.45 | 15*31*R14.1 | 950 | 10.8 | Mercedes-Benz | 8 | |
| 20x8.5 | 45 | 6x139.7 | 95.1 | 22.5*37.5 | 1050 | 14.5 | 2 | ||
| 22x8.5 | 45 | 6x139.7 | 95.1 | 22.5*37.5 | 1050 | 17.6 | 12 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x7.5 is a 17 inch wheel with a 7.5 inch wide rim. The J after a width, as in 7.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0448 comes in ET 38–45; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 6x139.7 is 6 bolts on a 139.7 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.45–95.1 mm for WD0448. A bore larger than the hub needs centering rings.
