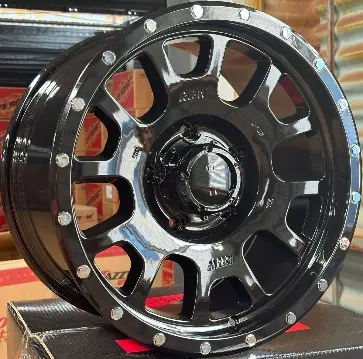

WD034 Cast Alloy Wheel in Gloss Black + Silver Rivets
WD034 is a cast alloy wheel (rim) in Gloss Black + Silver Rivets, one of 2 finishes. It is a 4x4 / off-road wheel. It comes in 18 inch: 1 size (18x9), 1 bolt pattern (5x150), offset ET 18 mm and center bore 110.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 18x9
Bolt patterns (PCD): 5x150
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 18x9 | 18 | 5x150 | 110.1 | Cone seat | 11 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 18x9 is a 18 inch wheel with a 9 inch wide rim. The J after a width, as in 9J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD034 comes in ET 18; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x150 is 5 bolts on a 150 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 110.1 mm for WD034. A bore larger than the hub needs centering rings.
