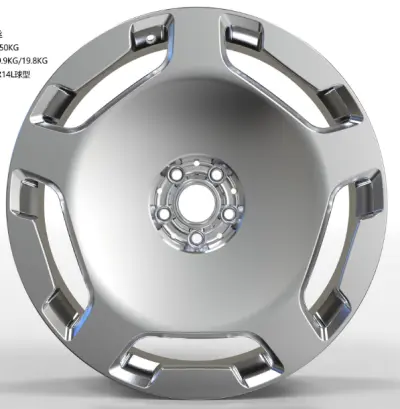

WD0322 Forged Alloy Wheel in Polished + Brushed Rim
WD0322 is a forged alloy wheel (rim) in Polished + Brushed Rim, one of 3 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 21–23 inch: 6 sizes (21x10, 21x11, 22x10, 22x11, 23x10, 23x11), 1 bolt pattern (5x112), offset ET 4–47 mm and center bore 66.6 mm. Listed for Mercedes-Benz. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Mercedes-Benz.
Finish
Wheel sizes: 21x10, 21x11, 22x10, 22x11, 23x10, 23x11
Bolt patterns (PCD): 5x112
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Lug hole (mm) | Load (kg) | Weight (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|---|
| 21x10 | 43 | 5x112 | 66.6 | Mercedes-Benz | 4 | ||||
| 21x11 | 42 | 5x112 | 66.6 | Mercedes-Benz | 0 | ||||
| 22x10 | 43 | 5x112 | 66.6 | Mercedes-Benz | 3 | ||||
| 22x11 | 47 | 5x112 | 66.6 | Mercedes-Benz | 0 | ||||
| 23x10 | 4 | 5x112 | 66.6 | Mercedes-Benz | 0 | ||||
| 23x11 | 47 | 5x112 | 66.6 | Mercedes-Benz | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 21x10 is a 21 inch wheel with a 10 inch wide rim. The J after a width, as in 10J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0322 comes in ET 4–47; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.6 mm for WD0322. A bore larger than the hub needs centering rings.
