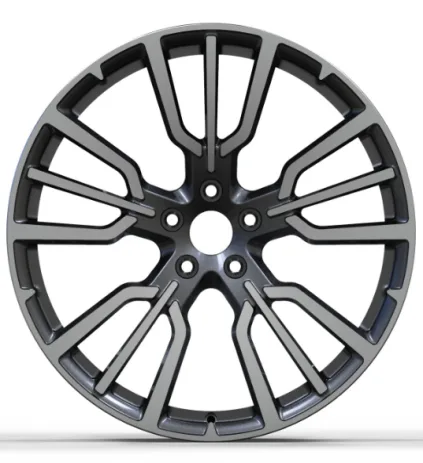

WD0290 Forged Alloy Wheel
WD0290 is a forged alloy wheel (rim) in 1 finish: Gunmetal Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 20 inch: 2 sizes (20x8.5, 20x10), 1 bolt pattern (5x110), offset ET 30–38 mm and center bore 65.1 mm. Listed for Maserati (Grecale). Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Maserati.
Finish
Wheel sizes: 20x8.5, 20x10
Bolt patterns (PCD): 5x110
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Lug hole (mm) | Load (kg) | Weight (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|---|
| 20x8.5 | 30 | 5x110 | 65.1 | 15*32*60 | 850 | 12.7 | Maserati | 0 | |
| 20x10 | 38 | 5x110 | 65.1 | 15*32*60 | 850 | 13.2 | Maserati Grecale | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 20x8.5 is a 20 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0290 comes in ET 30–38; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x110 is 5 bolts on a 110 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 65.1 mm for WD0290. A bore larger than the hub needs centering rings.
Fits the same bolt pattern and size
Same PCD, wheel diameter and a compatible center bore.
Similar finish and range
Same collection, with a matching finish or vehicle brand.
Similar design
Wheels that look alike, from the same collection. Check the bolt pattern before you order.
