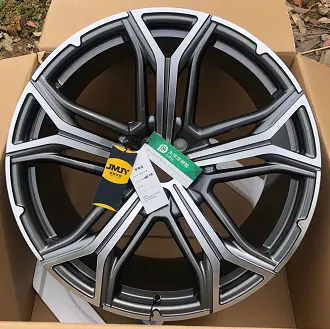

WD0143 Forged Alloy Wheel
WD0143 is a forged alloy wheel (rim) in 1 finish: Gunmetal Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 20–21 inch: 4 sizes (20x9, 20x10, 21x9.5, 21x10.5), 1 bolt pattern (5x114.3), offset ET 35–42 mm and center bore 67.1 mm. Listed for Maserati. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Maserati.
Finish
Wheel sizes: 20x9, 20x10, 21x9.5, 21x10.5
Bolt patterns (PCD): 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Lug hole (mm) | Load (kg) | Weight (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|---|
| 20x9 | 38 | 5x114.3 | 67.1 | 15*32*60 | 950 | 13.7 | Maserati | 2 | |
| 20x10 | 40 | 5x114.3 | 67.1 | 15*32*60 | 950 | 14.6 | Maserati | 6 | |
| 21x9.5 | 35 | 5x114.3 | 67.1 | 15*32*60 | 950 | 16 | Maserati | 4 | |
| 21x10.5 | 42 | 5x114.3 | 67.1 | 15*32*60 | 950 | 16.8 | Maserati | 1 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 20x9 is a 20 inch wheel with a 9 inch wide rim. The J after a width, as in 9J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0143 comes in ET 35–42; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x114.3 is 5 bolts on a 114.3 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 67.1 mm for WD0143. A bore larger than the hub needs centering rings.
