WD0231 Forged Alloy Wheel
WD0231 is a forged alloy wheel (rim) in 7 finishes. It is an aftermarket design. It comes in 18–19 inch: 3 sizes (18x8, 19x8.5, 19x9.5), 2 bolt patterns (5x112 and 5x114.3), offset ET 30–38 mm and center bore 66.45–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.

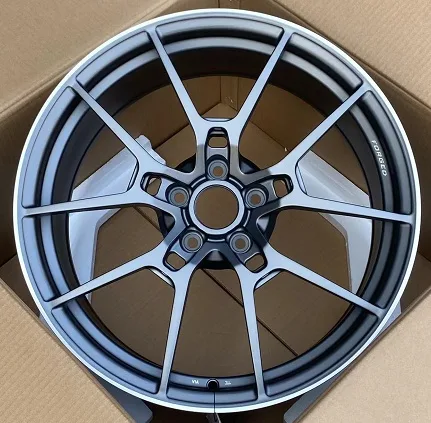

No photo for this finish yet; showing another finish of WD0231.
Finish
Matte Black Machined Lip + Milled LetteringMatte Gunmetal Machined Lip + Milled LetteringHyper Black (Full Paint)Matte Black Machined LipMatte Gunmetal Machined LipMatte Gunmetal Machined Lip Cut-outMatte Gunmetal Machined Lip Solid
Wheel sizes: 18x8, 19x8.5, 19x9.5
Bolt patterns (PCD): 5x112, 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Lug hole (mm) | Load (kg) | Weight (kg) | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|---|
| 18x8 | 38 | 5x112 | 66.45 | Ball seat | 15*32*R12.8 | 750 | 8.9 | ||
| 18x8 | 38 | 5x114.3 | 73.1 | Cone seat | 15*32*60 | 750 | 8.9 | 2 | |
| 19x8.5 | 30 | 5x112 | 66.5 | 15*32.5*60 | 750 | 10 | 1 | ||
| 19x8.5 | 38 | 5x114.3 | 73.1 | 15*32*60 | 750 | 9.7 | |||
| 19x9.5 | 35 | 5x112 | 66.5 | 15*32.5*60 | 750 | 10 | 3 | ||
| 19x9.5 | 38 | 5x114.3 | 73.1 | 15*32*60 | 750 | 10 | 4 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 18x8 is a 18 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0231 comes in ET 30–38; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.45–73.1 mm for WD0231. A bore larger than the hub needs centering rings.
