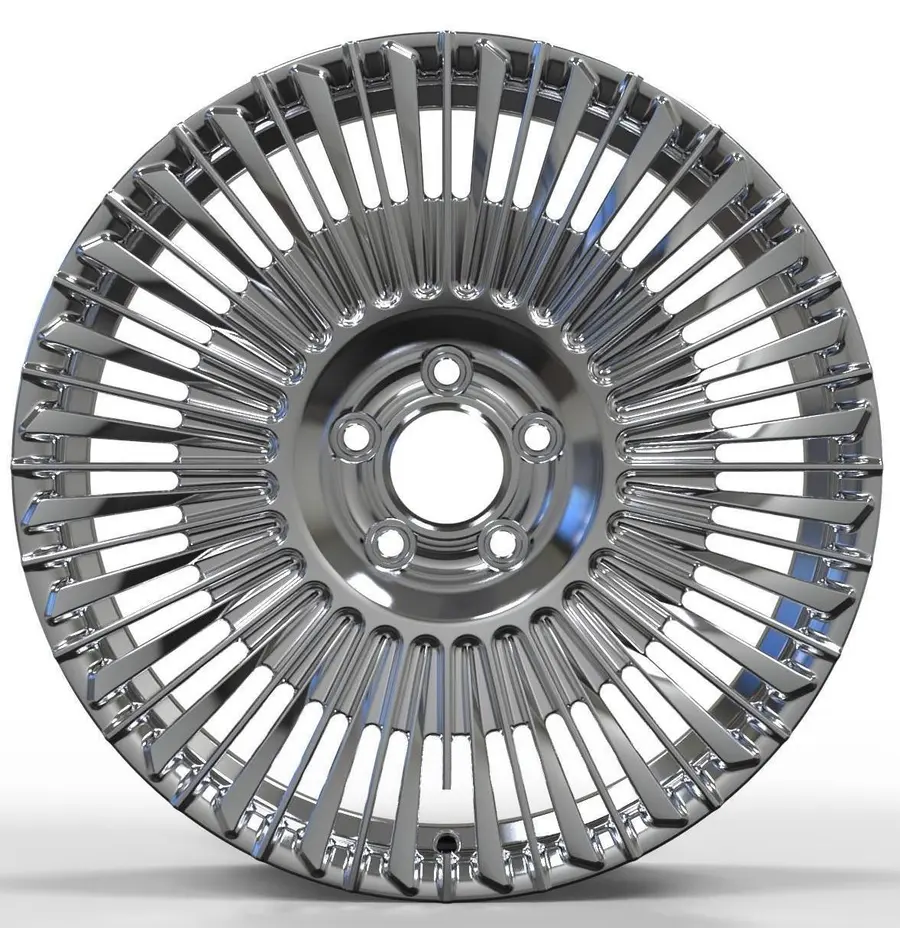

WD0157 Forged Alloy Wheel in Polished
WD0157 is a forged alloy wheel (rim) in Polished, one of 3 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 17–18 inch: 2 sizes (17x7.5, 18x8), 2 bolt patterns (5x112 and 5x114.3), offset ET 38 mm and center bore 66.45–67.1 mm. Listed for Mercedes-Benz. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Mercedes-Benz.
Finish
Wheel sizes: 17x7.5, 18x8
Bolt patterns (PCD): 5x112, 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Lug hole (mm) | Load (kg) | Weight (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|---|---|
| 17x7.5 | 38 | 5x112 | 66.45 | 15*31*R14.1 | 850 | 10.5 | Mercedes-Benz | 2 | ||
| 18x8 | 38 | 5x112 | 66.45 | 15*31*R14.1 | 850 | 10.7 | Mercedes-Benz | |||
| 18x8 | 38 | 5x112 | 67.1 | |||||||
| 18x8 | 38 | 5x114.3 | 67.1 | 4 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x7.5 is a 17 inch wheel with a 7.5 inch wide rim. The J after a width, as in 7.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0157 comes in ET 38; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.45–67.1 mm for WD0157. A bore larger than the hub needs centering rings.
