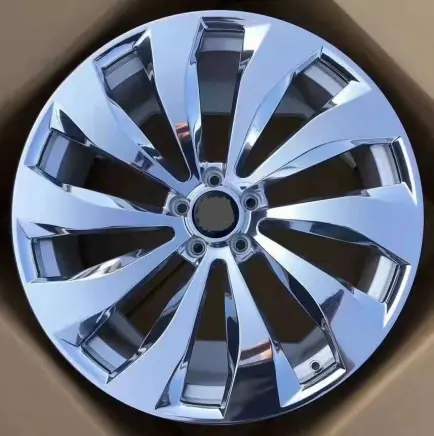

WD0062 Forged Alloy Wheel in Polished + Brushed Rim
WD0062 is a forged alloy wheel (rim) in Polished + Brushed Rim, one of 3 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 20–22 inch: 5 sizes (20x9.5, 21x9.5, 21x11, 22x9.5, 22x11), 2 bolt patterns (5x130 and 5x112), offset ET 40–61 mm and center bore 57.1–71.5 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 20x9.5, 21x9.5, 21x11, 22x9.5, 22x11
Bolt patterns (PCD): 5x112, 5x130
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Lug hole (mm) | Load (kg) | Weight (kg) | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|
| 20x9.5 | 40 | 5x112 | 57.1 | 8 | ||||
| 21x9.5 | 40 | 5x112 | 57.1 | 4 | ||||
| 21x9.5 | 61 | 5x130 | 71.5 | 2 | ||||
| 21x11 | 59 | 5x130 | 71.5 | 2 | ||||
| 22x9.5 | 61 | 5x130 | 71.5 | 0 | ||||
| 22x11 | 59 | 5x130 | 71.5 | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 20x9.5 is a 20 inch wheel with a 9.5 inch wide rim. The J after a width, as in 9.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0062 comes in ET 40–61; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x130 is 5 bolts on a 130 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 57.1–71.5 mm for WD0062. A bore larger than the hub needs centering rings.
