WD0340 Forged Alloy Wheel
WD0340 is a forged alloy wheel (rim) in 14 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 21–23 inch: 3 sizes (21x9.5, 22x9.5, 23x9.5), 1 bolt pattern (5x120), offset ET 42.5 mm and center bore 72.56 mm. Listed for Land Rover (Range Rover). Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Land Rover.

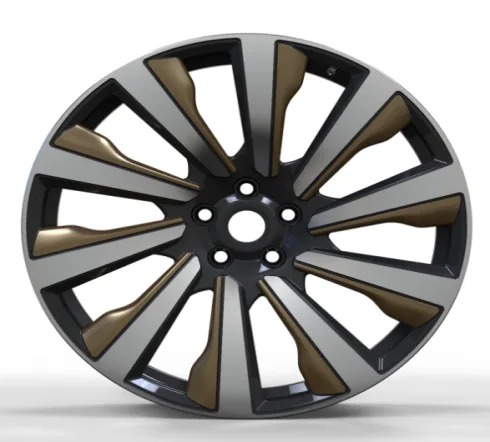

No photo for this finish yet; showing another finish of WD0340.
Finish
Gloss Black Machined FaceMatte Gunmetal (Full Paint)Matte Black (Full Paint)Matte Gunmetal Machined FaceGunmetal Machined FaceMatte Gunmetal (Full Paint) + SilverMatte Gunmetal Machined Face + BlackGloss Black Machined Face + BlackGloss Black Machined Face + BronzeMatte Black (Full Paint) + Gloss BlackMatte Gunmetal (Full Paint) + Gloss BlackGunmetal Machined Face + SilverMatte Gunmetal Machined Face + BronzeGunmetal (Full Paint)
Wheel sizes: 21x9.5, 22x9.5, 23x9.5
Bolt patterns (PCD): 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Lug hole (mm) | Load (kg) | Weight (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|---|---|
| 21x9.5 | 42.5 | 5x120 | 72.56 | Cone seat | 18*36*60 thickness 19 | 1035 | 18 | Land Rover | 14 | |
| 22x9.5 | 42.5 | 5x120 | 72.56 | Cone seat | 18*36*60 thickness 19 | 1035 | 18.8 | Land Rover | 43 | |
| 23x9.5 | 42.5 | 5x120 | 72.56 | Cone seat | 18*36*60 thickness 19 | 1035 | 19.6 | Land Rover | 33 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 21x9.5 is a 21 inch wheel with a 9.5 inch wide rim. The J after a width, as in 9.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0340 comes in ET 42.5; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x120 is 5 bolts on a 120 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 72.56 mm for WD0340. A bore larger than the hub needs centering rings.
