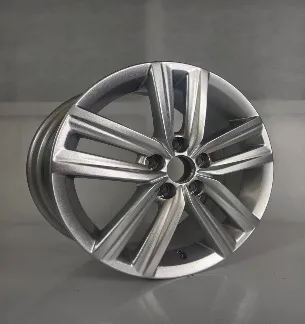

5138 Cast Alloy Wheel
5138 is a cast alloy wheel (rim) in 1 finish: Silver (Full Paint). It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 15 inch: 1 size (15x6), 1 bolt pattern (5x100), offset ET 40 mm and center bore 57.1 mm. Listed for Volkswagen. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Volkswagen.
Finish
Wheel sizes: 15x6
Bolt patterns (PCD): 5x100
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 15x6 | 40 | 5x100 | 57.1 | Ball seat | Volkswagen | 50+ |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 15x6 is a 15 inch wheel with a 6 inch wide rim. The J after a width, as in 6J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. 5138 comes in ET 40; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x100 is 5 bolts on a 100 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 57.1 mm for 5138. A bore larger than the hub needs centering rings.
