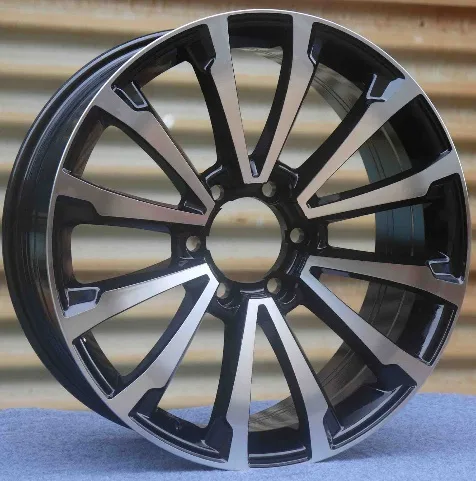

FBX217 Cast Alloy Wheel
FBX217 is a cast alloy wheel (rim) in 1 finish: Gloss Black Machined Face. It is a 4x4 / off-road wheel. It comes in 16 inch: 1 size (16x7), 1 bolt pattern (5x150), offset ET 0 mm and center bore 110.1 mm. Listed for Toyota. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Toyota.
Finish
Wheel sizes: 16x7
Bolt patterns (PCD): 5x150
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 16x7 | 0 | 5x150 | 110.1 | Flat seat | Toyota | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 16x7 is a 16 inch wheel with a 7 inch wide rim. The J after a width, as in 7J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. FBX217 comes in ET 0; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x150 is 5 bolts on a 150 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 110.1 mm for FBX217. A bore larger than the hub needs centering rings.
