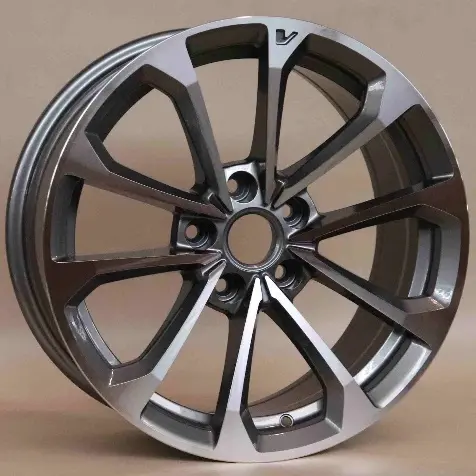

7096 Cast Alloy Wheel
7096 is a cast alloy wheel (rim) in 2 finishes: Gunmetal Machined Face and Gloss Black Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 17 inch: 1 size (17x8), 1 bolt pattern (5x115), offset ET 32 mm and center bore 70.3 mm. Listed for Cadillac. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 17x8
Bolt patterns (PCD): 5x115
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 17x8 | 32 | 5x115 | 70.3 | Cone seat | Cadillac | 50+ |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x8 is a 17 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. 7096 comes in ET 32; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x115 is 5 bolts on a 115 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 70.3 mm for 7096. A bore larger than the hub needs centering rings.
