WD596 Cast Alloy Wheel

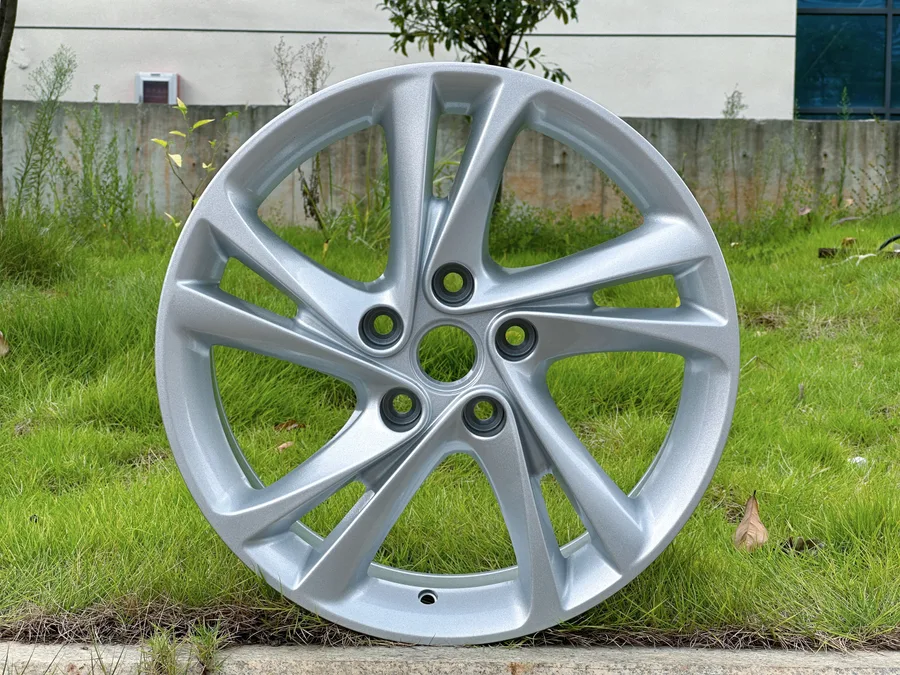

WD596 is a cast alloy wheel (rim) in 1 finish: Silver (Full Paint). It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 17 inch: 1 size (17x7.5), 1 bolt pattern (5x115), offset ET 44.5 mm and center bore 70.3 mm. Listed for Buick. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Buick.
Finish
Wheel sizes: 17x7.5
Bolt patterns (PCD): 5x115
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 17x7.5 | 44.5 | 5x115 | 70.3 | Cone seat | Buick | 50+ |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x7.5 is a 17 inch wheel with a 7.5 inch wide rim. The J after a width, as in 7.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD596 comes in ET 44.5; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x115 is 5 bolts on a 115 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 70.3 mm for WD596. A bore larger than the hub needs centering rings.
