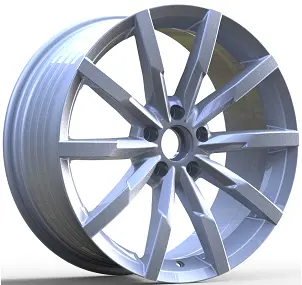

WD544 Cast Alloy Wheel
WD544 is a cast alloy wheel (rim) in 1 finish: Silver (Full Paint). It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 17–19 inch: 3 sizes (17x7, 18x8, 19x8), 1 bolt pattern (5x112), offset ET 40–44 mm and center bore 57.1 mm. Listed for Volkswagen. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Volkswagen.
Finish
Wheel sizes: 17x7, 18x8, 19x8
Bolt patterns (PCD): 5x112
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 17x7 | 40 | 5x112 | 57.1 | Ball seat | Volkswagen | 50+ | |
| 18x8 | 44 | 5x112 | 57.1 | Ball seat | Volkswagen | 45 | |
| 19x8 | 44 | 5x112 | 57.1 | Ball seat | Volkswagen | 39 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x7 is a 17 inch wheel with a 7 inch wide rim. The J after a width, as in 7J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD544 comes in ET 40–44; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 57.1 mm for WD544. A bore larger than the hub needs centering rings.
