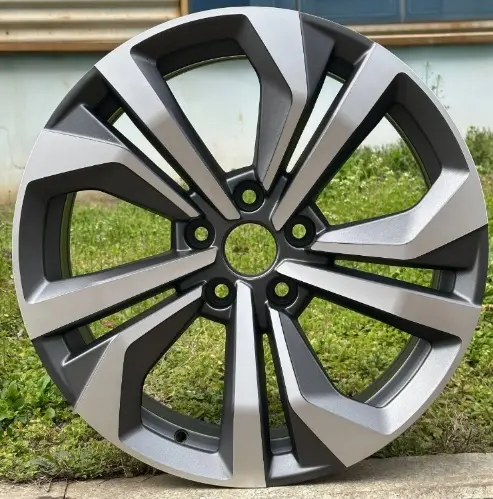

WD285 Cast Alloy Wheel
WD285 is a cast alloy wheel (rim) in 1 finish: Gunmetal Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 18 inch: 1 size (18x7), 1 bolt pattern (5x114.3), offset ET 32 mm and center bore 56.6 mm. Listed for Wuling. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 18x7
Bolt patterns (PCD): 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 18x7 | 32 | 5x114.3 | 56.6 | Cone seat | Wuling | 50 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 18x7 is a 18 inch wheel with a 7 inch wide rim. The J after a width, as in 7J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD285 comes in ET 32; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x114.3 is 5 bolts on a 114.3 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 56.6 mm for WD285. A bore larger than the hub needs centering rings.
