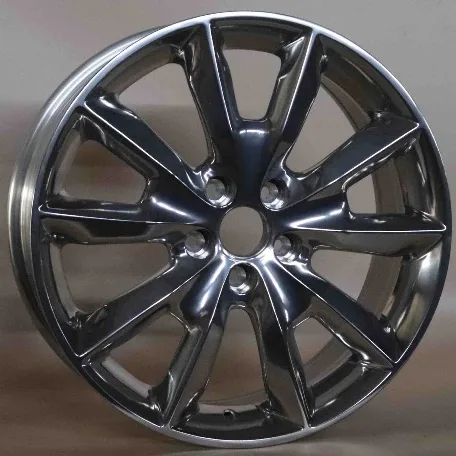

WD055 Cast Alloy Wheel
WD055 is a cast alloy wheel (rim) in 2 finishes: Silver (Full Paint) and Polished. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 18 inch: 1 size (18x7), 1 bolt pattern (5x110), offset ET 41 mm and center bore 65.1 mm. Listed for Jeep. Not sure what PCD, ET and CB mean? Read how to choose wheels.
No photo for this finish yet; showing another finish of WD055.
Finish
Wheel sizes: 18x7
Bolt patterns (PCD): 5x110
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 18x7 | 41 | 5x110 | 65.1 | Cone seat | Jeep | 50+ |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 18x7 is a 18 inch wheel with a 7 inch wide rim. The J after a width, as in 7J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD055 comes in ET 41; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x110 is 5 bolts on a 110 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 65.1 mm for WD055. A bore larger than the hub needs centering rings.
