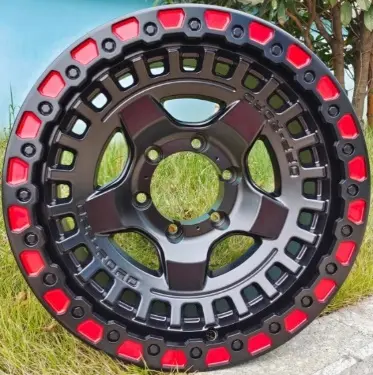

WD170 Cast Alloy Wheel in Matte Black + Red Line
WD170 is a cast alloy wheel (rim) in Matte Black + Red Line, one of 2 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 17 inch: 1 size (17x9), 3 bolt patterns (5x127, 6x114.3 and 6x139.7), offset ET -10–10 mm and center bore 66.1–110.1 mm. Feature: anti-slip groove. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 17x9
Bolt patterns (PCD): 5x127, 6x139.7, 6x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 17x9 | -10 | 5x127 | 71.5 | Cone seat | Anti-slip groove | 50+ | |
| 17x9 | 0 | 6x139.7 | 110.1 | Cone seat | Anti-slip groove | 39 | |
| 17x9 | 10 | 6x114.3 | 66.1 | Cone seat | Anti-slip groove | 26 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x9 is a 17 inch wheel with a 9 inch wide rim. The J after a width, as in 9J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD170 comes in ET -10–10; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x127 is 5 bolts on a 127 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.1–110.1 mm for WD170. A bore larger than the hub needs centering rings.
