WD163 Cast Alloy Wheel in Gloss Black Machined Face

Name: WD163 Alloy Wheel
Brand: Sky Flux
SKU: WD163

WD163 is a cast alloy wheel (rim) in Gloss Black Machined Face, one of 2 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 17–19 inch: 6 sizes (17x7.5, 18x8, 19x8, 19x8.5, 19x9, 19x9.5), 1 bolt pattern (5x112), offset ET 35–45 mm and center bore 66.5–66.56 mm. Listed for Mercedes-Benz. Not sure what PCD, ET and CB mean? Read how to choose wheels.

More wheels for Mercedes-Benz.

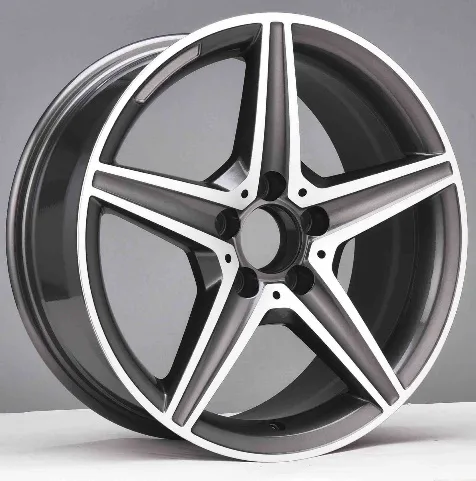

WD163 alloy wheel rim – Gloss Black Machined Face

WD163 alloy wheel – Gloss Black Machined Face, photo 2

Finish

Gunmetal Machined Face Gloss Black Machined Face

Wheel sizes: 17x7.5, 18x8, 19x8, 19x8.5, 19x9, 19x9.5

Bolt patterns (PCD): 5x112

Sizes and specifications of WD163 in Gloss Black Machined Face
Size (D x J)	Offset (ET)	Bolt pattern (PCD)	Center bore (CB)	Hole type	Fits	Stock
17x7.5	35	5x112	66.5	Ball seat	Mercedes-Benz	1
18x8	38	5x112	66.56	Ball seat	Mercedes-Benz
19x8	35	5x112	66.56	Ball seat	Mercedes-Benz
19x8.5	40	5x112	66.56	Ball seat	Mercedes-Benz
19x9	40	5x112	66.56	Ball seat	Mercedes-Benz	50
19x9.5	45	5x112	66.56	Ball seat	Mercedes-Benz

What these numbers mean

Size (D x J): Diameter in inches, then rim width in inches: 17x7.5 is a 17 inch wheel with a 7.5 inch wide rim. The J after a width, as in 7.5J, names the rim flange profile.
Offset (ET): The distance in mm from the wheel's centerline to its mounting face. WD163 comes in ET 35–45; a lower ET sits the wheel further out.
Bolt pattern (PCD): The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
Center bore (CB): The central hole that sits over the vehicle's hub: 66.5–66.56 mm for WD163. A bore larger than the hub needs centering rings.
