WD0608 Forged Alloy Wheel

Name: WD0608 Alloy Wheel
Brand: Sky Flux
SKU: WD0608

WD0608 is a forged alloy wheel (rim) in 2 finishes: Gloss Black (Full Paint) and Brushed Aluminium (Natural). It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 20–23 inch: 6 sizes (20x8.5, 20x9, 21x9, 21x9.5, 22x9.5, 23x9.5), 1 bolt pattern (5x120), offset ET 30–38 mm and center bore 66.1–72.56 mm. Listed for Land Rover. Not sure what PCD, ET and CB mean? Read how to choose wheels.

More wheels for Land Rover.

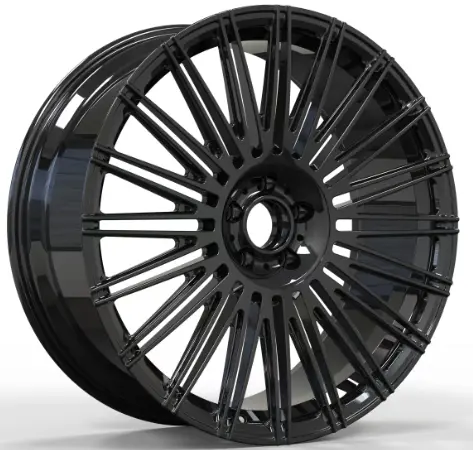

WD0608 alloy wheel rim – Gloss Black (Full Paint)

No photo for this finish yet; showing another finish of WD0608.

Finish

Gloss Black (Full Paint)Brushed Aluminium (Natural)

Wheel sizes: 20x8.5, 20x9, 21x9, 21x9.5, 22x9.5, 23x9.5

Bolt patterns (PCD): 5x120

Sizes and specifications of WD0608 in Gloss Black (Full Paint)
Size (D x J)	Offset (ET)	Bolt pattern (PCD)	Center bore (CB)	Load (kg)	Fits	Stock
20x8.5	30	5x120	66.1	1100		8
20x9	30	5x120	66.1	1100
21x9	35	5x120	66.1	1100		14
21x9	38	5x120	72.56		Land Rover
21x9.5	38	5x120	66.1	1100		11
22x9.5	38	5x120	72.56		Land Rover	4
23x9.5	38	5x120	72.56		Land Rover	12

What these numbers mean

Size (D x J): Diameter in inches, then rim width in inches: 20x8.5 is a 20 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
Offset (ET): The distance in mm from the wheel's centerline to its mounting face. WD0608 comes in ET 30–38; a lower ET sits the wheel further out.
Bolt pattern (PCD): The number of bolts and the diameter in mm of the circle they sit on: 5x120 is 5 bolts on a 120 mm circle. It must match the vehicle.
Center bore (CB): The central hole that sits over the vehicle's hub: 66.1–72.56 mm for WD0608. A bore larger than the hub needs centering rings.
