WD0479 Forged Alloy Wheel

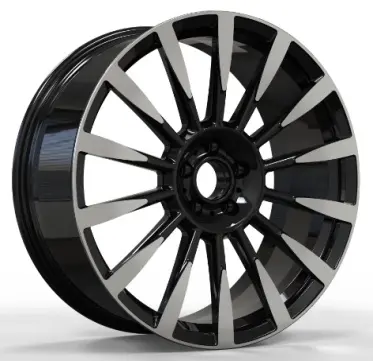

WD0479 is a forged alloy wheel (rim) in 1 finish: Gloss Black Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 21–23 inch: 3 sizes (21x9.5, 22x9.5, 23x9.5), 1 bolt pattern (5x120), offset ET 38 mm and center bore 72.56 mm. Listed for Land Rover. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Land Rover.
Finish
Wheel sizes: 21x9.5, 22x9.5, 23x9.5
Bolt patterns (PCD): 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Lug hole (mm) | Load (kg) | Weight (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|---|---|
| 21x9.5 | 38 | 5x120 | 72.56 | Cone seat | 15*32.5*60 | 1100 | 15.5 | Land Rover | 12 | |
| 22x9.5 | 38 | 5x120 | 72.56 | Cone seat | 15*32.5*60 | 1100 | 16.2 | Land Rover | 12 | |
| 23x9.5 | 38 | 5x120 | 72.56 | Cone seat | 15*32.5*60 | 1100 | 18.1 | Land Rover | 16 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 21x9.5 is a 21 inch wheel with a 9.5 inch wide rim. The J after a width, as in 9.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0479 comes in ET 38; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x120 is 5 bolts on a 120 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 72.56 mm for WD0479. A bore larger than the hub needs centering rings.
