WD0603 Forged Alloy Wheel

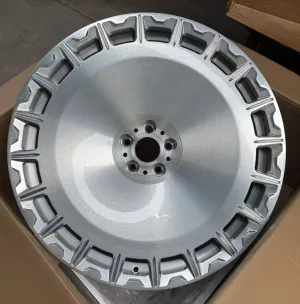

WD0603 is a forged alloy wheel (rim) in 4 finishes: Brushed Aluminium (Natural), Gloss Black (Full Paint), Gloss Black and Brushed Aluminium. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 20–22 inch: 3 sizes (20x8.5, 21x9, 22x9.5), 1 bolt pattern (5x108), offset ET 30–38 mm and center bore 63.4 mm. Listed for Zeekr (9X). Not sure what PCD, ET and CB mean? Read how to choose wheels.
No photo for this finish yet; showing another finish of WD0603.
Finish
Wheel sizes: 20x8.5, 21x9, 22x9.5
Bolt patterns (PCD): 5x108
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Load (kg) | Weight (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|
| 20x8.5 | 30 | 5x108 | 63.4 | 1300 | 15.1 | Zeekr 9X | ||
| 21x9 | 35 | 5x108 | 63.4 | 1300 | 16.5 | |||
| 22x9.5 | 38 | 5x108 | 63.4 | 1300 | 18 | 2 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 20x8.5 is a 20 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0603 comes in ET 30–38; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x108 is 5 bolts on a 108 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 63.4 mm for WD0603. A bore larger than the hub needs centering rings.
