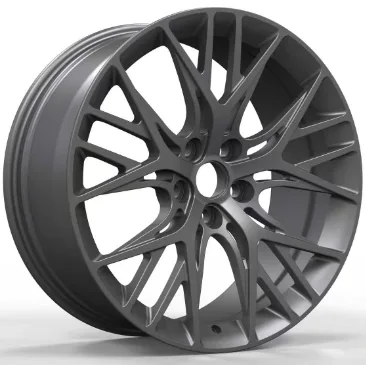

WD0593 Forged Alloy Wheel
WD0593 is a forged alloy wheel (rim) in 2 finishes: Matte Gunmetal (Full Paint) and Matte Black (Full Paint). It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 20–22 inch: 2 sizes (20x9, 22x9.5), 1 bolt pattern (5x120), offset ET 38 mm and center bore 72.56 mm. Listed for Land Rover. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Land Rover.
No photo for this finish yet; showing another finish of WD0593.
Finish
Wheel sizes: 20x9, 22x9.5
Bolt patterns (PCD): 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Load (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 20x9 | 38 | 5x120 | 72.56 | 1000 | Land Rover | 16 | |
| 22x9.5 | 38 | 5x120 | 72.56 | 1000 | Land Rover | 16 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 20x9 is a 20 inch wheel with a 9 inch wide rim. The J after a width, as in 9J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0593 comes in ET 38; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x120 is 5 bolts on a 120 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 72.56 mm for WD0593. A bore larger than the hub needs centering rings.
