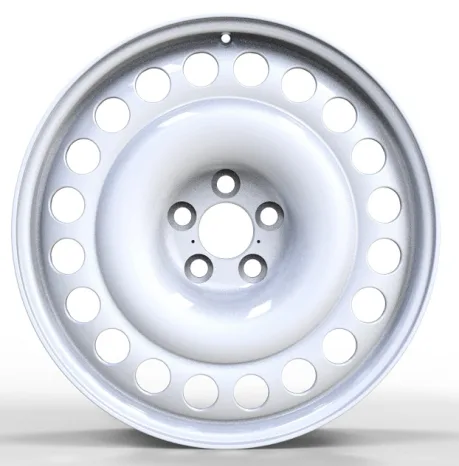

WD0172 Forged Alloy Wheel
WD0172 is a forged alloy wheel (rim) in 2 finishes: White (Full Paint) and Matte Black (Full Paint). It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 19–20 inch: 2 sizes (19x8.5, 20x9), 1 bolt pattern (5x120), offset ET 30–40 mm and center bore 72.56 mm. Listed for Land Rover. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Land Rover.
Finish
Wheel sizes: 19x8.5, 20x9
Bolt patterns (PCD): 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Lug hole (mm) | Load (kg) | Weight (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|---|---|
| 19x8.5 | 30 | 5x120 | 72.56 | Flat seat | 23.5*37.5 | 950 | 11.7 | Land Rover | 0 | |
| 20x9 | 40 | 5x120 | 72.56 | 23.5*37.5 | 950 | 13.5 | Land Rover | 4 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 19x8.5 is a 19 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0172 comes in ET 30–40; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x120 is 5 bolts on a 120 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 72.56 mm for WD0172. A bore larger than the hub needs centering rings.
