WD0399 Forged Alloy Wheel in Gloss Black Machined Face
WD0399 is a forged alloy wheel (rim) in Gloss Black Machined Face, one of 2 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 19–20 inch: 2 sizes (19x8, 20x8), 2 bolt patterns (5x114.3 and 5x120), offset ET 30–35 mm and center bore 60.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.

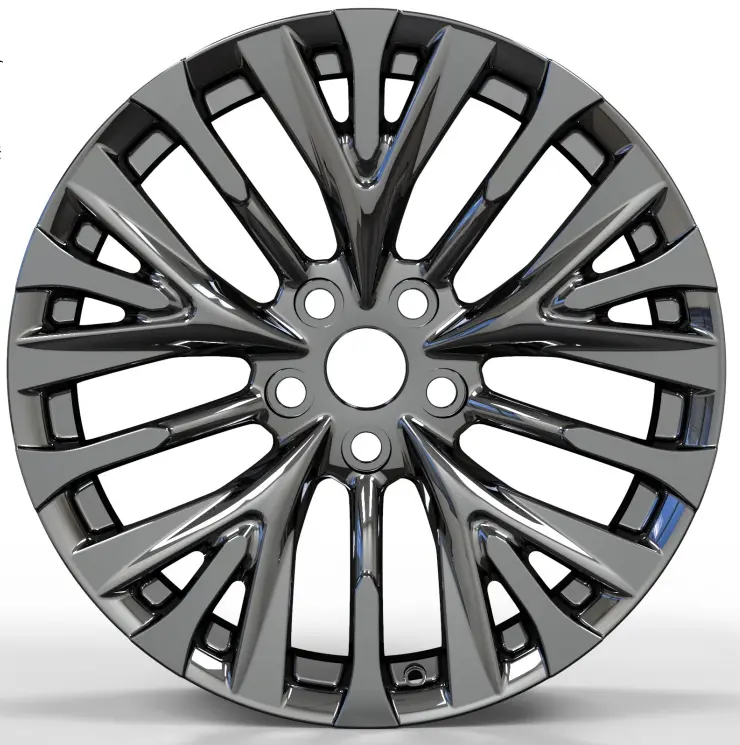

No photo for this finish yet; showing another finish of WD0399.
Finish
Wheel sizes: 19x8, 20x8
Bolt patterns (PCD): 5x114.3, 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Lug hole (mm) | Load (kg) | Weight (kg) | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|
| 19x8 | 35 | 5x114.3 | 60.1 | 0 | ||||
| 20x8 | 30 | 5x120 | 60.1 | |||||
| 20x8 | 35 | 5x114.3 | 60.1 | 4 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 19x8 is a 19 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0399 comes in ET 30–35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x114.3 is 5 bolts on a 114.3 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 60.1 mm for WD0399. A bore larger than the hub needs centering rings.
