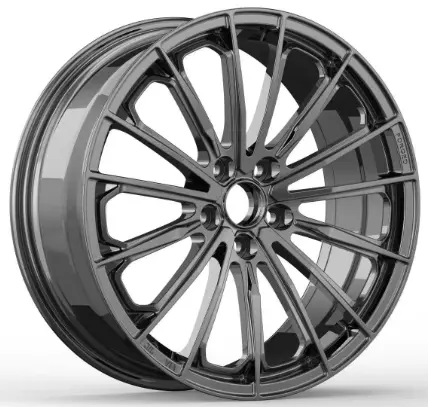

WD0607 Forged Alloy Wheel
WD0607 is a forged alloy wheel (rim) in 1 finish: Black Chrome Plating. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 19–21 inch: 5 sizes (19x8, 19x8.5, 20x8, 20x8.5, 21x8.5), 2 bolt patterns (5x114.3 and 5x120), offset ET 35 mm and center bore 60.1–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 19x8, 19x8.5, 20x8, 20x8.5, 21x8.5
Bolt patterns (PCD): 5x120, 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Load (kg) | Weight (kg) | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|
| 19x8 | 35 | 5x120 | 60.1 | Flat seat | 850 | 16 | ||
| 19x8.5 | 35 | 5x114.3 | 60.1 | Flat seat | 850 | 20 | ||
| 20x8 | 35 | 5x120 | 60.1 | Flat seat | 850 | 12.2 | 16 | |
| 20x8.5 | 35 | 5x114.3 | 60.1 | Flat seat | 850 | 16 | ||
| 21x8.5 | 35 | 5x114.3 | 73.1 | Cone seat | 850 | |||
| 21x8.5 | 35 | 5x120 | 73.1 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 19x8 is a 19 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0607 comes in ET 35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x114.3 is 5 bolts on a 114.3 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 60.1–73.1 mm for WD0607. A bore larger than the hub needs centering rings.
