WD0353 Forged Alloy Wheel
WD0353 is a forged alloy wheel (rim) in 5 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 19–23 inch: 12 sizes (19x8.5, 19x9.5, 20x8.5, 20x9.5, 21x8.5, 21x9 and more), 4 bolt patterns (5x120, 5x112, 5x114.3 and 5x108), offset ET 28–43 mm and center bore 63.4–73.1 mm. Listed for Denza (Z9 GT). Not sure what PCD, ET and CB mean? Read how to choose wheels.

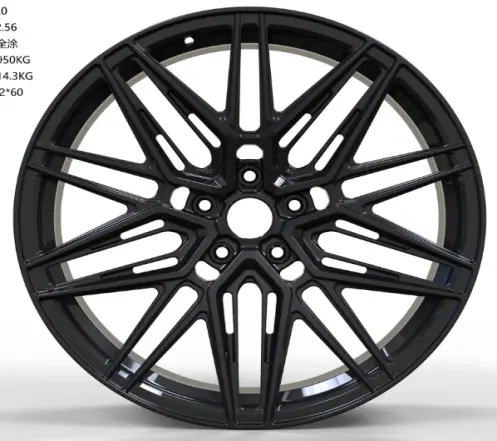

No photo for this finish yet; showing another finish of WD0353.
Finish
Wheel sizes: 19x8.5, 19x9.5, 20x8.5, 20x9.5, 21x8.5, 21x9, 21x9.5, 21x10.5, 22x9, 22x9.5, 22x10.5, 23x9.5
Bolt patterns (PCD): 5x112, 5x120, 5x114.3, 5x108
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Lug hole (mm) | Load (kg) | Weight (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|---|
| 19x8.5 | 30 | 5x112 | 66.45 | 15*32.5*60 | 850 | 12.5 | 2 | ||
| 19x8.5 | 30 | 5x120 | 72.56 | 15*32.5*60 | 850 | 12.5 | 4 | ||
| 19x8.5 | 38 | 5x114.3 | 73.1 | 15*32.5*60 | 850 | 12.3 | 2 | ||
| 19x9.5 | 35 | 5x112 | 66.45 | 15*32.5*60 | 850 | 12.3 | 2 | ||
| 19x9.5 | 35 | 5x120 | 72.56 | 15*32.5*60 | 850 | 12.3 | 4 | ||
| 19x9.5 | 38 | 5x114.3 | 73.1 | 15*32.5*60 | 850 | 12.3 | 6 | ||
| 20x8.5 | 30 | 5x112 | 66.45 | 15*32.5*60 | 950 | 13.2 | 6 | ||
| 20x8.5 | 30 | 5x120 | 72.56 | 15*32.5*60 | 950 | 13.1 | 6 | ||
| 20x8.5 | 30 | 5x120 | 64.1 | Denza Z9 GT | 4 | ||||
| 20x8.5 | 38 | 5x114.3 | 73.1 | 15*32.5*60 | 950 | 13 | 4 | ||
| 20x9.5 | 35 | 5x112 | 66.45 | 15*32.5*60 | 950 | 13.2 | 0 | ||
| 20x9.5 | 35 | 5x120 | 72.56 | 15*32.5*60 | 950 | 13.2 | 4 | ||
| 20x9.5 | 38 | 5x114.3 | 73.1 | 15*32.5*60 | 950 | 13.1 | 0 | ||
| 21x8.5 | 30 | 5x120 | 64.1 | 6 | |||||
| 21x9 | 28 | 5x112 | 66.45 | 15*32*R12.8 | 950 | 14.4 | 12 | ||
| 21x9 | 35 | 5x108 | 63.4 | 15*32.5*60 | 950 | 14.2 | 8 | ||
| 21x9 | 35 | 5x114.3 | 73.1 | 15*32.5*60 | 950 | 14.2 | 3 | ||
| 21x9.5 | 35 | 5x112 | 66.5 | 2 | |||||
| 21x9.5 | 38 | 5x120 | 72.56 | 15*32.5*60 | 950 | 14.3 | 11 | ||
| 21x9.5 | 43 | 5x120 | 64.1 | 6 | |||||
| 21x10.5 | 38 | 5x112 | 66.5 | 0 | |||||
| 22x9 | 35 | 5x108 | 63.4 | 15*32.5*60 | 950 | 16 | 4 | ||
| 22x9.5 | 30 | 5x112 | 66.5 | 4 | |||||
| 22x9.5 | 38 | 5x120 | 72.56 | 15*32.5*60 | 950 | 16.1 | 4 | ||
| 22x10.5 | 40 | 5x112 | 66.5 | 4 | |||||
| 23x9.5 | 38 | 5x120 | 72.56 | 15*32.5*60 | 950 | 16.5 | 4 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 19x8.5 is a 19 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0353 comes in ET 28–43; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x120 is 5 bolts on a 120 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 63.4–73.1 mm for WD0353. A bore larger than the hub needs centering rings.
