WD0344 Forged Alloy Wheel in Gloss Black (Full Paint)
WD0344 is a forged alloy wheel (rim) in Gloss Black (Full Paint), one of 2 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 20–22 inch: 3 sizes (20x8.5, 21x9, 22x9), 1 bolt pattern (5x108), offset ET 40 mm and center bore 63.4 mm. Listed for Land Rover. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Land Rover.

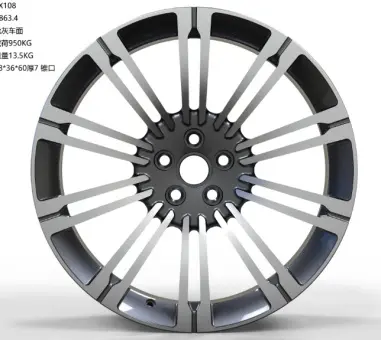

No photo for this finish yet; showing another finish of WD0344.
Finish
Wheel sizes: 20x8.5, 21x9, 22x9
Bolt patterns (PCD): 5x108
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Lug hole (mm) | Load (kg) | Weight (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|---|---|
| 20x8.5 | 40 | 5x108 | 63.4 | 18*36*60 thickness 7 | 950 | 13.3 | Land Rover | 8 | ||
| 21x9 | 40 | 5x108 | 63.4 | 18*36*60 thickness 7 | 950 | 14.8 | Land Rover | 0 | ||
| 22x9 | 40 | 5x108 | 63.4 | 18*36*60 thickness 7 | 950 | 16.6 | Land Rover | 4 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 20x8.5 is a 20 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0344 comes in ET 40; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x108 is 5 bolts on a 108 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 63.4 mm for WD0344. A bore larger than the hub needs centering rings.
