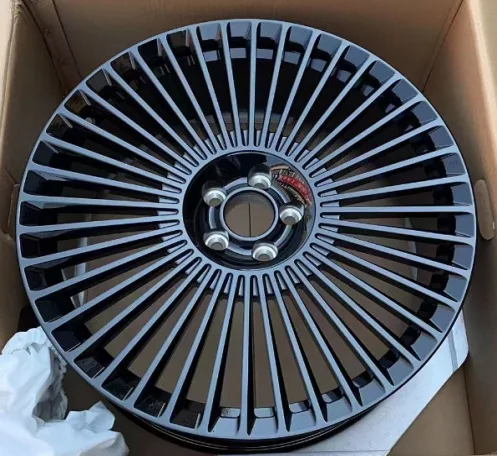

WD0325 Forged Alloy Wheel
WD0325 is a forged alloy wheel (rim) in 5 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 20–23 inch: 6 sizes (20x8.5, 21x9, 21x9.5, 22x9, 22x9.5, 23x9.5), 2 bolt patterns (5x120 and 5x108), offset ET 30–40 mm and center bore 62.5–72.56 mm. Listed for Land Rover (Range Rover). Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Land Rover.
Finish
Gloss Black (Full Paint)Gloss Black Machined FaceWhite (Full Paint)Brushed Aluminium (Natural)Brushed Aluminium
Wheel sizes: 20x8.5, 21x9, 21x9.5, 22x9, 22x9.5, 23x9.5
Bolt patterns (PCD): 5x120, 5x108
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Lug hole (mm) | Load (kg) | Weight (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|---|---|
| 20x8.5 | 30 | 5x120 | 66.1 | 0 | ||||||
| 20x8.5 | 35 | 5x120 | 62.5 | 3 | ||||||
| 20x8.5 | 40 | 5x108 | 63.4 | Cone seat | 18*32*60 thickness 7 | 1035 | 14.3 | Land Rover | 20 | |
| 21x9 | 35 | 5x120 | 66.1 | 0 | ||||||
| 21x9 | 38 | 5x120 | 62.5 | 10 | ||||||
| 21x9 | 40 | 5x108 | 63.4 | Cone seat | 18*32*60 thickness 7 | 1035 | 15.8 | Land Rover | 0 | |
| 21x9.5 | 38 | 5x120 | 66.1 | 0 | ||||||
| 21x9.5 | 40 | 5x120 | 72.56 | Cone seat | 18*36*60 thickness 19 | 1035 | 16 | Land Rover Range Rover | 16 | |
| 22x9 | 38 | 5x120 | 62.5 | 4 | ||||||
| 22x9.5 | 40 | 5x120 | 72.56 | Cone seat | 18*36*60 thickness 19 | 1035 | 18.9 | Land Rover | 4 | |
| 23x9.5 | 40 | 5x120 | 72.56 | Cone seat | 18*36*60 thickness 19 | 1035 | 19.5 | Land Rover | 12 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 20x8.5 is a 20 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0325 comes in ET 30–40; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x120 is 5 bolts on a 120 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 62.5–72.56 mm for WD0325. A bore larger than the hub needs centering rings.
