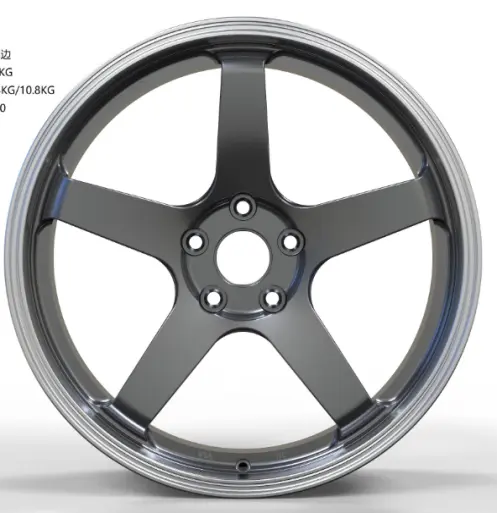

WD0306 Forged Alloy Wheel
WD0306 is a forged alloy wheel (rim) in 1 finish: Hyper Black Machined Lip. It is an aftermarket design. It comes in 19 inch: 2 sizes (19x8.5, 19x9.5), 1 bolt pattern (5x114.3), offset ET 35–38 mm and center bore 73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 19x8.5, 19x9.5
Bolt patterns (PCD): 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Stock | Copy specs |
|---|---|---|---|---|---|---|
| 19x8.5 | 35 | 5x114.3 | 73.1 | Cone seat | 0 | |
| 19x9.5 | 38 | 5x114.3 | 73.1 | Cone seat | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 19x8.5 is a 19 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0306 comes in ET 35–38; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x114.3 is 5 bolts on a 114.3 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 73.1 mm for WD0306. A bore larger than the hub needs centering rings.
