WD0280 Forged Alloy Wheel
WD0280 is a forged alloy wheel (rim) in 2 finishes: Matte Bronze and Gloss Black (Full Paint). It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 19–20 inch: 4 sizes (19x8, 19x9, 20x8.5, 20x9.5), 1 bolt pattern (5x112), offset ET 30–35 mm and center bore 66.5 mm. Listed for BMW. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for BMW.

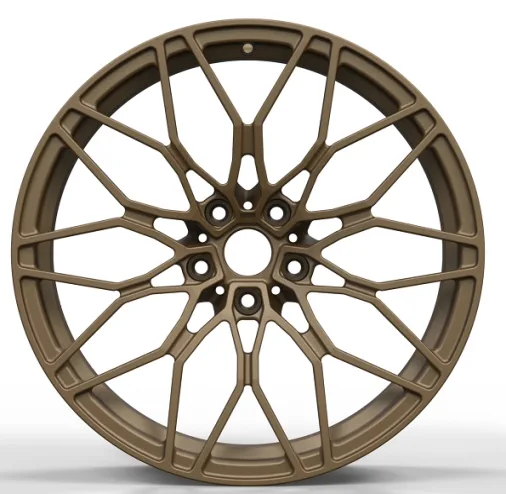

No photo for this finish yet; showing another finish of WD0280.
Finish
Wheel sizes: 19x8, 19x9, 20x8.5, 20x9.5
Bolt patterns (PCD): 5x112
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Lug hole (mm) | Load (kg) | Weight (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|---|
| 19x8 | 30 | 5x112 | 66.5 | 15*32*60 | 750 | 9.6 | BMW | 0 | |
| 19x9 | 35 | 5x112 | 66.5 | 15*32*60 | 750 | 10.1 | BMW | 0 | |
| 20x8.5 | 30 | 5x112 | 66.5 | 15*32*60 | 750 | 12.1 | BMW | 0 | |
| 20x9.5 | 35 | 5x112 | 66.5 | 15*32*60 | 750 | 12.7 | BMW | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 19x8 is a 19 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0280 comes in ET 30–35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.5 mm for WD0280. A bore larger than the hub needs centering rings.
