WD0237 Forged Alloy Wheel in Gloss Black (Full Paint)
WD0237 is a forged alloy wheel (rim) in Gloss Black (Full Paint), one of 3 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 22 inch: 1 size (22x10), 1 bolt pattern (5x130), offset ET 28 mm and center bore 71.5 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.

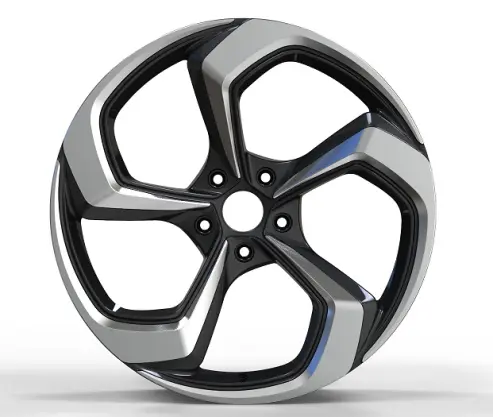

No photo for this finish yet; showing another finish of WD0237.
Finish
Wheel sizes: 22x10
Bolt patterns (PCD): 5x130
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Lug hole (mm) | Load (kg) | Weight (kg) | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|
| 22x10 | 28 | 5x130 | 71.5 | 15*32*R14 | 850 | 18.6 | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 22x10 is a 22 inch wheel with a 10 inch wide rim. The J after a width, as in 10J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0237 comes in ET 28; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x130 is 5 bolts on a 130 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 71.5 mm for WD0237. A bore larger than the hub needs centering rings.
