WD007 Cast Alloy Wheel in White Chrome Plating
WD007 is a cast alloy wheel (rim) in White Chrome Plating, one of 3 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 18–20 inch: 3 sizes (18x8.5, 20x8.5, 20x9.5), 1 bolt pattern (5x112), offset ET 30–43.5 mm and center bore 66.5–66.56 mm. Listed for Mercedes-Benz. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Mercedes-Benz.

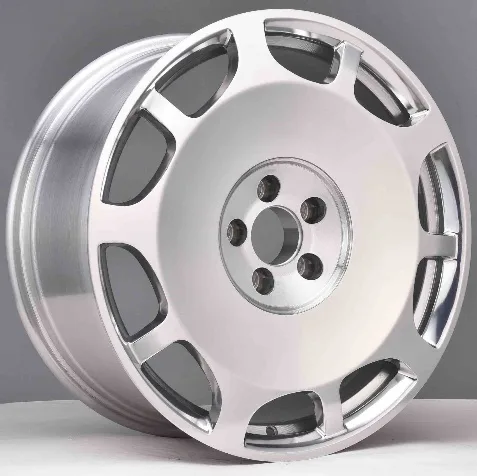

No photo for this finish yet; showing another finish of WD007.
Finish
Wheel sizes: 18x8.5, 20x8.5, 20x9.5
Bolt patterns (PCD): 5x112
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 18x8.5 | 35 | 5x112 | 66.5 | Ball seat | Mercedes-Benz | 50+ | |
| 20x8.5 | 30 | 5x112 | 66.56 | Ball seat | Mercedes-Benz · Front | 2 | |
| 20x8.5 | 36 | 5x112 | 66.56 | Ball seat | Mercedes-Benz · Front | 50+ | |
| 20x9.5 | 43.5 | 5x112 | 66.56 | Ball seat | Mercedes-Benz · Rear | 50+ |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 18x8.5 is a 18 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD007 comes in ET 30–43.5; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.5–66.56 mm for WD007. A bore larger than the hub needs centering rings.
