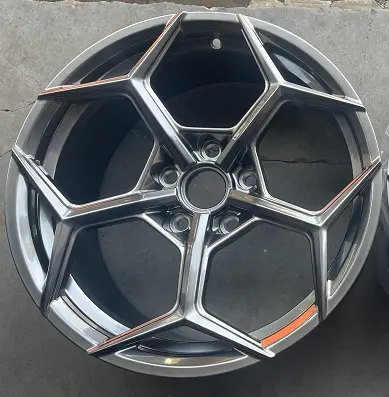

WD0065 Forged Alloy Wheel
WD0065 is a forged alloy wheel (rim) in 1 finish: Hyper Black (Full Paint). It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 18 inch: 2 sizes (18x8, 18x9), 2 bolt patterns (5x115 and 5x120), offset ET 30–38 mm and center bore 66.9–70.3 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 18x8, 18x9
Bolt patterns (PCD): 5x115, 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Lug hole (mm) | Load (kg) | Weight (kg) | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|
| 18x8 | 30 | 5x115 | 70.3 | 0 | ||||
| 18x8 | 33 | 5x120 | 66.9 | 15*32*60 | 750 | 9.3 | 1 | |
| 18x9 | 38 | 5x115 | 70.3 | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 18x8 is a 18 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0065 comes in ET 30–38; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x115 is 5 bolts on a 115 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.9–70.3 mm for WD0065. A bore larger than the hub needs centering rings.
