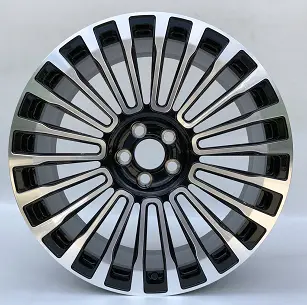

JX0027 Forged Alloy Wheel
JX0027 is a forged alloy wheel (rim) in 1 finish: Gloss Black Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 17–21 inch: 2 sizes (17x7.5, 21x9.5), 2 bolt patterns (5x112 and 5x120), offset ET 38–45 mm and center bore 66.6–72.56 mm. Listed for Land Rover and Mercedes-Benz. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Land Rover, Mercedes-Benz.
Finish
Wheel sizes: 17x7.5, 21x9.5
Bolt patterns (PCD): 5x112, 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|
| 17x7.5 | 38 | 5x112 | 66.6 | Mercedes-Benz | 14 | |
| 21x9.5 | 45 | 5x120 | 72.56 | Land Rover | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x7.5 is a 17 inch wheel with a 7.5 inch wide rim. The J after a width, as in 7.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. JX0027 comes in ET 38–45; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.6–72.56 mm for JX0027. A bore larger than the hub needs centering rings.
