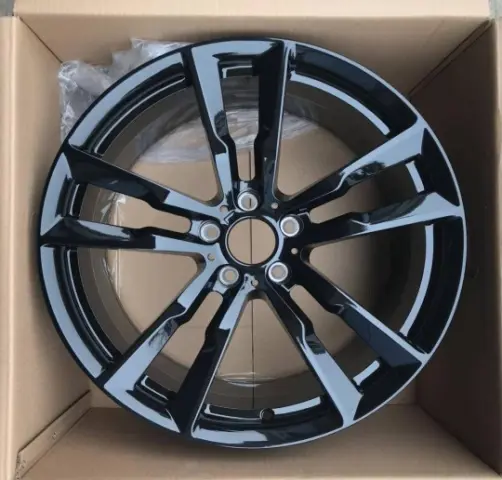

FG165 Forged Alloy Wheel in Gloss Black (Full Paint)
FG165 is a forged alloy wheel (rim) in Gloss Black (Full Paint), one of 2 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 20 inch: 2 sizes (20x10, 20x11), 1 bolt pattern (5x120), offset ET 37–40 mm and center bore 74.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 20x10, 20x11
Bolt patterns (PCD): 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Stock | Copy specs |
|---|---|---|---|---|---|
| 20x10 | 40 | 5x120 | 74.1 | 0 | |
| 20x11 | 37 | 5x120 | 74.1 | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 20x10 is a 20 inch wheel with a 10 inch wide rim. The J after a width, as in 10J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. FG165 comes in ET 37–40; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x120 is 5 bolts on a 120 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 74.1 mm for FG165. A bore larger than the hub needs centering rings.
