FG165 Forged Alloy Wheel

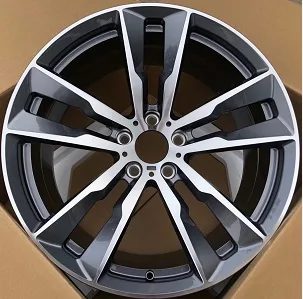

FG165 is a forged alloy wheel (rim) in 2 finishes: Gunmetal Machined Face and Gloss Black (Full Paint). It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 19–20 inch: 3 sizes (19x9, 20x10, 20x11), 1 bolt pattern (5x120), offset ET 37–40 mm and center bore 74.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
No photo for this finish yet; showing another finish of FG165.
Finish
Wheel sizes: 19x9
Bolt patterns (PCD): 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Stock | Copy specs |
|---|---|---|---|---|---|
| 19x9 | 37 | 5x120 | 74.1 | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 19x9 is a 19 inch wheel with a 9 inch wide rim. The J after a width, as in 9J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. FG165 comes in ET 37–40; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x120 is 5 bolts on a 120 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 74.1 mm for FG165. A bore larger than the hub needs centering rings.
