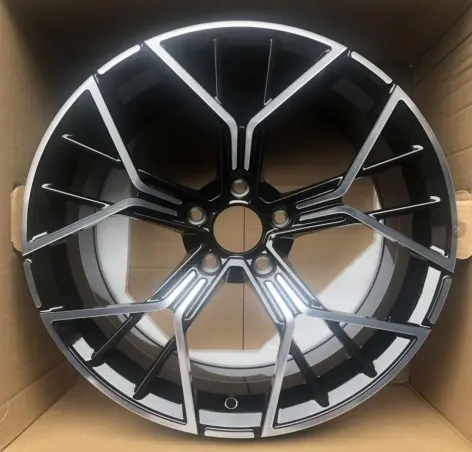

B01 Forged Alloy Wheel
B01 is a forged alloy wheel (rim) in 2 finishes: Dark Gunmetal Machined Face and Black Gunmetal. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 19 inch: 2 sizes (19x8.5, 19x9.5), 2 bolt patterns (5x110 and 5x112), offset ET 25–35 mm and center bore 65.1–66.6 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 19x8.5, 19x9.5
Bolt patterns (PCD): 5x112
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Stock | Copy specs |
|---|---|---|---|---|---|
| 19x8.5 | 25 | 5x112 | 66.6 | 1 | |
| 19x9.5 | 35 | 5x112 | 66.6 | 2 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 19x8.5 is a 19 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. B01 comes in ET 25–35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x110 is 5 bolts on a 110 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 65.1–66.6 mm for B01. A bore larger than the hub needs centering rings.
