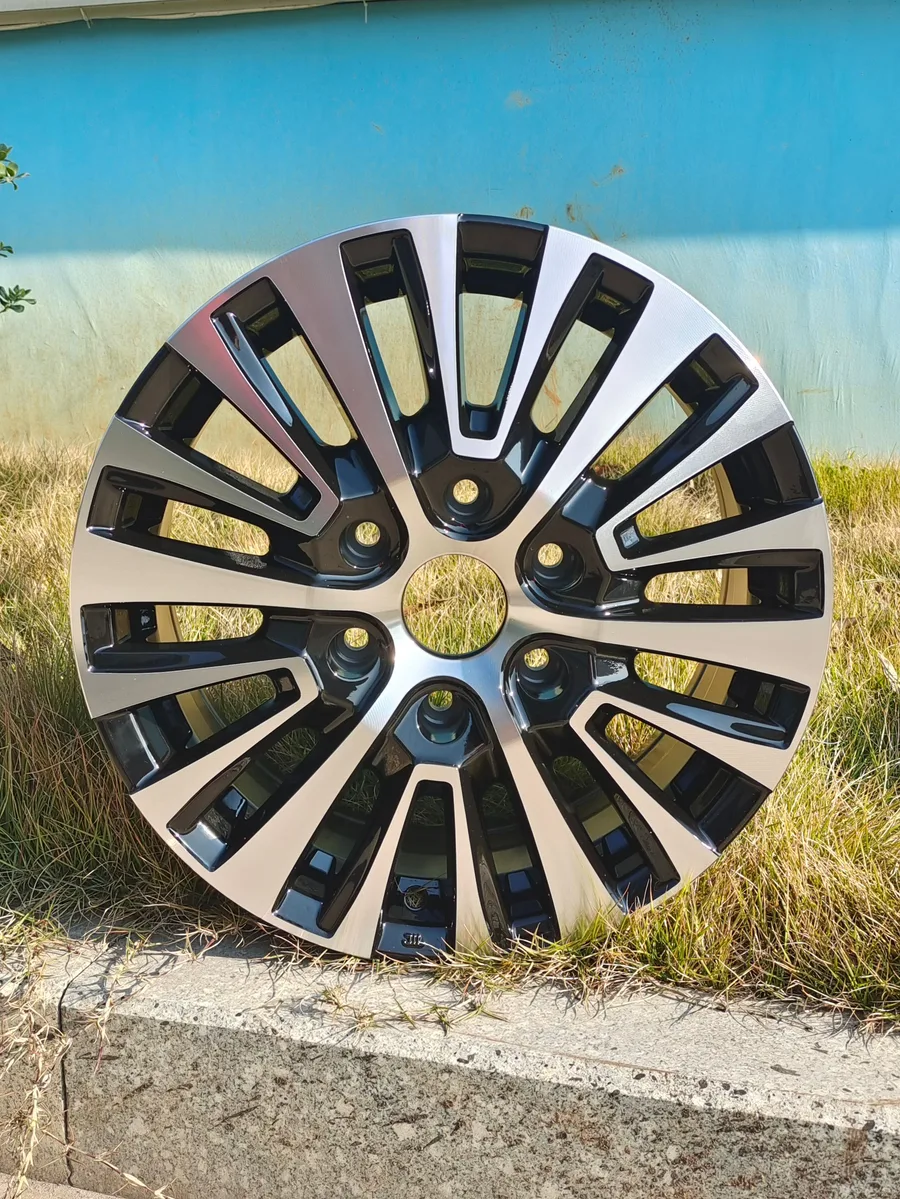

6176 Cast Alloy Wheel
6176 is a cast alloy wheel (rim) in 1 finish: Gloss Black Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 16 inch: 1 size (16x6.5), 1 bolt pattern (6x130), offset ET 40 mm and center bore 74.6–75 mm. Listed for Maxus and Toyota. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Toyota.
Finish
Wheel sizes: 16x6.5
Bolt patterns (PCD): 6x130
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 16x6.5 | 40 | 6x130 | 75 | Flat seat | Toyota | 0 | |
| 16x6.5 | 40 | 6x130 | 74.6 | Flat seat | Maxus | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 16x6.5 is a 16 inch wheel with a 6.5 inch wide rim. The J after a width, as in 6.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. 6176 comes in ET 40; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 6x130 is 6 bolts on a 130 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 74.6–75 mm for 6176. A bore larger than the hub needs centering rings.
