WD357 Cast Alloy Wheel
WD357 is a cast alloy wheel (rim) in 2 finishes: Silver Machined Face and Silver Machined Face + Black Lip. It is a 4x4 / off-road wheel. It comes in 17–20 inch: 2 sizes (17x8.5, 20x10), 3 bolt patterns (6x139.7, 5x127 and 5x150), offset ET -12–25 mm and center bore 71.5–110.1 mm. Feature: anti-slip groove. Not sure what PCD, ET and CB mean? Read how to choose wheels.

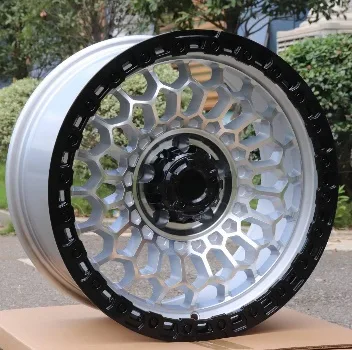

No photo for this finish yet; showing another finish of WD357.
Finish
Wheel sizes: 17x8.5, 20x10
Bolt patterns (PCD): 5x127, 6x139.7, 5x150
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 17x8.5 | -12 | 5x127 | 71.5 | Cone seat | Anti-slip groove | 50+ | |
| 17x8.5 | 0 | 6x139.7 | 110.1 | Cone seat | Anti-slip groove | 50+ | |
| 17x8.5 | 25 | 5x150 | 110.1 | Cone seat | Anti-slip groove | 50+ | |
| 20x10 | -12 | 6x139.7 | 110.1 | Cone seat | Anti-slip groove | 50+ |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x8.5 is a 17 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD357 comes in ET -12–25; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 6x139.7 is 6 bolts on a 139.7 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 71.5–110.1 mm for WD357. A bore larger than the hub needs centering rings.
