WD323 Cast Alloy Wheel

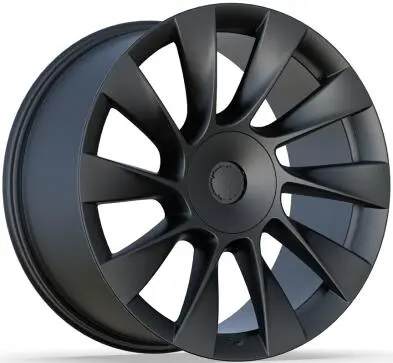

WD323 is a cast alloy wheel (rim) in 1 finish: Matte Black (Full Paint). It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 20 inch: 1 size (20x9.5), 1 bolt pattern (5x114.3), offset ET 45 mm and center bore 64.1 mm. Listed for Tesla. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 20x9.5
Bolt patterns (PCD): 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 20x9.5 | 45 | 5x114.3 | 64.1 | Cone seat | Tesla |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 20x9.5 is a 20 inch wheel with a 9.5 inch wide rim. The J after a width, as in 9.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD323 comes in ET 45; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x114.3 is 5 bolts on a 114.3 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 64.1 mm for WD323. A bore larger than the hub needs centering rings.
